Dell Inspiron 15 Gaming 7567 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 2
Dell Inspiron 15 Gaming 7567 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

25

Zeitaufwand

10 - 35 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. UZdJwAQ661U3AtmU

  2. coNHq5YOLvdnPUNy

    • Peel off the camera cable from the computer base.

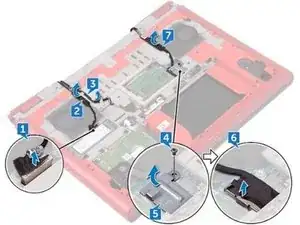

  3. dDVKwA12IiT6cXNZ

    • Note the antenna cables routing and remove the antenna cables from the routing guides on the computer base.

  4. AVoGSsQiQYuSV1BM

    • Remove the screw (M3x3) that secures the display-cable bracket to the system board.

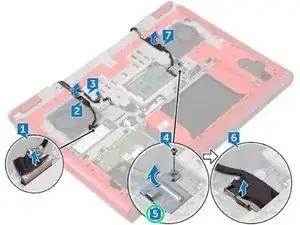

  5. g1dpMov6cKB2xCEg

    • Lift the display-cable bracket off the computer base.

  6. GAGRRZG3ElP15UUC

    • Using the pull tab, disconnect the display cable from the system board.

  7. 2IZ56aYV1cGiZluJ

    • Remove the display cable from the routing guides on the computer base and peel off the display cable from the computer base.

  8. XLNKGDIdDBoWoAt1

    • Remove the two screws (M2x3) that secure the display assembly to the computer base.

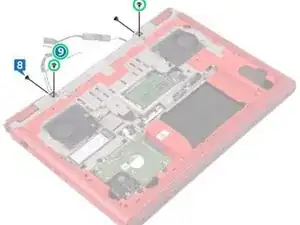

  9. BKwglTrSaauIWMKl

    • Remove the two screws (M2.5x5) that secure the display assembly to the computer base.

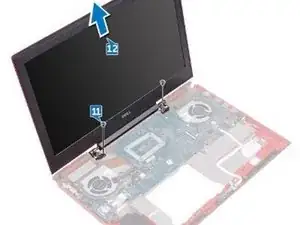

  10. HylfJF6T5sJXQRiZ

    • Turn the computer over and open the display.

  11. eC3u2HmWIINojxAg

    • Remove the two screws (M2.5x5) that secure the display assembly to the computer base.

  12. VSsuBlS2VTHpAxZM

    • Lift the display assembly off the computer base.

  13. NYHInh1GPxZqrWhy

    • Align the screw holes on the NEW display assembly with the screw holes on the computer base.

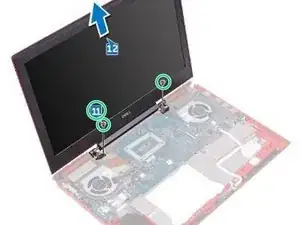

  14. tDxLXFdDAkpUCJ2p

    • Replace the two screws (M2x2.5) that secure the display assembly to the computer base.

  15. x6dKaDQZFRI2LdlD

    • Close the display and turn the computer over.

  16. FrRNW6J6MHDSSkhP

    • Replace the two screws (M2x3) that secure the display assembly to the computer base.

  17. ylYyofJESrOlYxYV

    • Replace the two screws (M2.5x5) that secure the display assembly to the computer base.

  18. IxYGOBiuorcej3nB

    • Route the display cable through the routing guides on the computer base.

  19. jDm6icmrBnUHDUn3

    • Adhere the display cable and the camera cable to the computer base.

  20. dCOxH4oYebQBGun5

    • Connect the display cable to the system board.

  21. NhNkiJ1koA1fCXrM

    • Align the screw hole on display-cable bracket with the screw hole on the computer base.

  22. 1GvbB3rVjOckSJUG

    • Replace the screw (M3x3) that secures the display-cable bracket to the computer base.

  23. aCQGrGgmTUNyl4gP

    • Route the antenna cables through the routing guides on the computer base.

  24. OCFM3Zd6ykJC3eNy

    • Adhere the camera cable to the computer base.

  25. pBM4r2JLlZJM2TlM

    • Connect the camera cable to the system board.
