Dell Inspiron 15 Gaming 7577 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 4
Dell Inspiron 15 Gaming 7577 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 - 6 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. evPjtfT53bS4KmTI

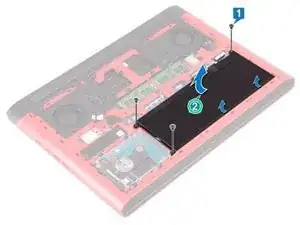

  2. eSDHkcVNZWiltnYl

    • Lift the battery at an angle off the computer base.

    • Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

  4. HGFLlS15ACC1KPuY

    • Slide the NEW battery in the slot on the computer base and align the screw holes on the battery with the screw holes on the computer base.

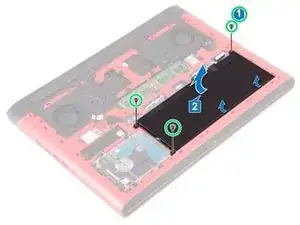

  5. ERucmXZ2hMOfvXSt

    • Replace the three screws (M2.5x6) that secure the battery to the computer base.
