Dell Inspiron 15 Gaming 7577 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 Gaming 7577 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

4 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. R1mCILXAuLBiPsRa

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the two screws (M2.5x5) that secure the display hinges to the palm-rest assembly.

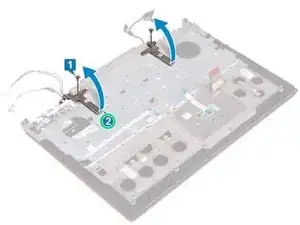

  2. tK5BGZdpckvViEsf

    • Open the display hinges at an angle of 90 degrees.

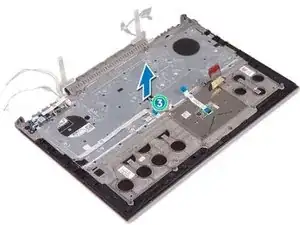

  3. 4iL5JCHwTHP2N1ah

    • Lift the palm-rest assembly off the display assembly.

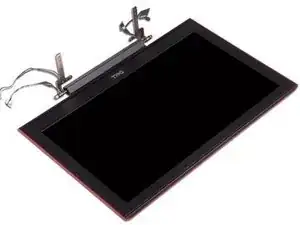

  4. ItPn2fKkJidVShwB

    • After performing the above steps, you will be left with the display assembly.

  5. qMRrern32yux2uGo

    • Place the palm-rest assembly on the display assembly.

  6. fRK6J3KlooHyvtuL

    • Close the display hinges at an angle of 90 degrees.

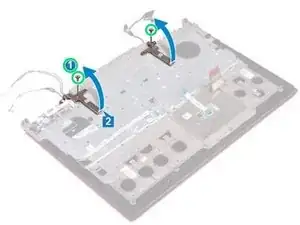

  7. SHJI2BCRlsNEwtCH

    • Replace the two screws (M2.5x5) that secure the display hinges to the palm-rest assembly.
