Dell Inspiron 15 Gaming 7577 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 Gaming 7577 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

15

Zeitaufwand

2 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • NOTE: The latch on the hard-drive locking connector is fragile. Pulling the latch forcefully may damage the hard-drive locking connector. Exercise care when handling the latch on the hard-drive locking connector.

  2. 4H2AvDrIYmYdlZRM

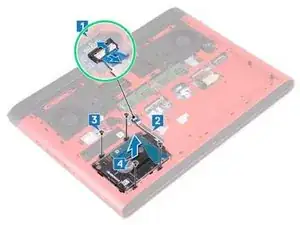

    • Open the latch and disconnect the hard-drive cable from the system board.

  3. UspCWgyRdhocb5mG

    • Peel off the hard-drive cable from the computer base.

  4. 4RFBgedblJitTjCN

    • Remove the four screws (M2.5x3) that secure the hard-drive assembly to the computer base.

  5. fTBjZilRuKHnHbXB

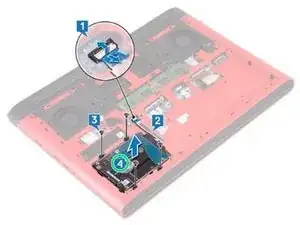

    • Lift the hard-drive assembly, along with its cable, off the computer base.

  6. HOiQqf5wQTtcYZii

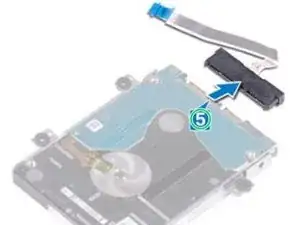

    • Disconnect the interposer from the hard-drive assembly.

  7. R31eEEh2wooSy4IT

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  8. nY1TVY6cMW2ICUlm

    • Lift the hard-drive bracket off the hard drive.

  9. CLiUrAfKLwwvfHKy

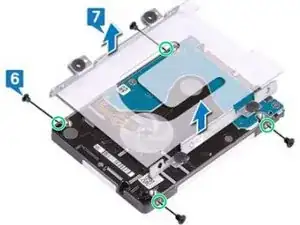

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

  10. XQqOWIyLsUnSWHSI

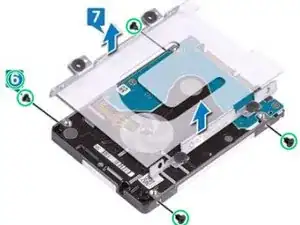

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  11. LaOfC4QTDHUfrmMW

    • Connect the interposer to the hard-drive assembly.

  12. fBkHCZ5iEQfLthLX

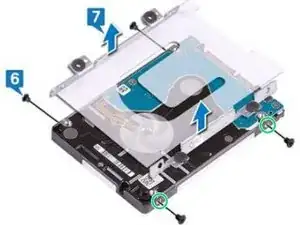

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

  13. FcKCDNIBuyCEFZNu

    • Replace the four screws (M2.5x3) that secure the hard-drive assembly to the computer base.

  14. sYJaexJ2MGPG6RiY

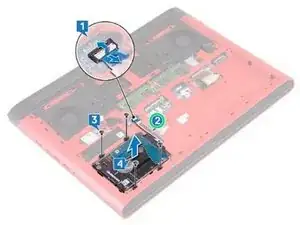

    • Adhere the hard-drive cable to the computer base.

  15. YULyIvgk1fkiENEM

    • Slide the hard-drive cable into the connector on the system board and close the latch to secure the hard-drive cable.
