Dell Inspiron 15 Gaming 7577 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

4 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

Schritt 1

dwimhmDcufY1JpBG

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Locate the memory module on the system board.

Schritt 2

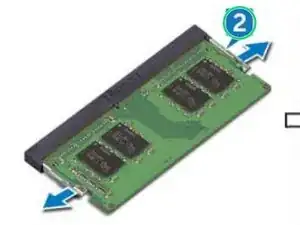

cgfqKcvyuXT1cKnE

cgfqKcvyuXT1cKnE

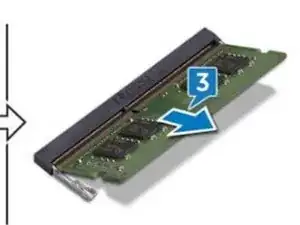

BgTsdjiGOtMbEXRB

Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

Schritt 3

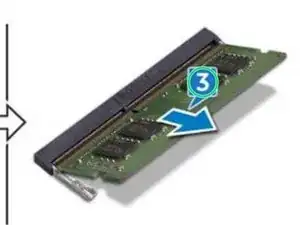

1Os2WgS5YxxTylLu

Remove the memory module from the memory-module slot.

Schritt 4

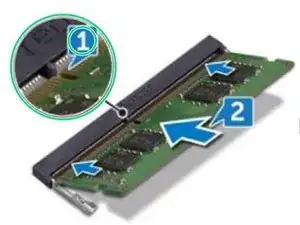

K1WScJJhfFoWDxOk

Align the notch on the NEW memory module with the tab on the memory-module slot.

Schritt 5

2CQyKqqhFwmlZpHD

Slide the memory module firmly into the slot at an angle.

Schritt 6

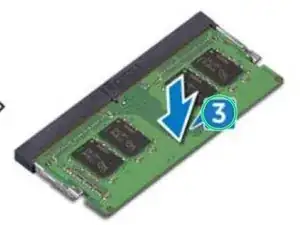

iNNjm1RyssxNXJM1

Press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
