Dell Inspiron 15 M5030 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 M5030 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

30 - 55 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. px25PCKWSDUiDOej

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Shut down the computer and turn it over.

  2. 2NC2nCLAm1F64EZR

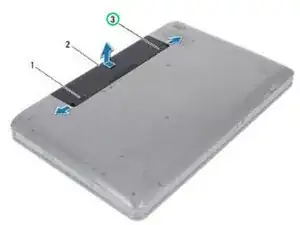

    • Slide the battery lock latch to the unlock position.

  3. wnlcjRRt1CX2b3Ox

    • Slide the battery release latch to the side.

  4. IusYJu4rbTsuUTRs

    • Slide and lift the battery out of the battery bay.

  5. f6FCDjBmsI415Xpu

    • Align the tabs on the NEW battery with the slots on the battery bay.

  6. 26TdkBMZmUmOFMao

    • Slide the battery into the battery bay until it clicks into place.

  7. HxTMuweJqHMEKQjx

    • Slide the battery lock latch to the lock position.
