Dell Inspiron 15 M5030 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 M5030 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. 3NSDUSytqlkTRJAA

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the hard drive to the base of the computer.

  2. A5K1xHZpBRmIBAsJ

    • Slide the hard drive away from the hard-drive connector on the system board.

  3. O34ZbOgiNDjenYQT

    • Lift the hard drive out of the hard-drive bay.

  4. RodjbqNO3ZRZOiIr

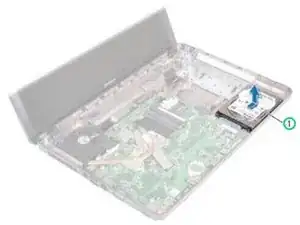

    • Place the NEW hard drive in the hard-drive bay and push the hard drive towards the connector until it is fully seated.

  5. 1HHZUSAZeqSpMMO6

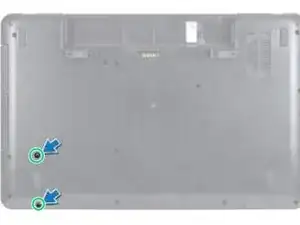

    • Turn the computer over and replace the two screws that secure the hard- drive to the base of the computer.
