Dell Inspiron 15 M5030 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

25 Sekunden - 2 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. ynpnRCr3TuL1kc4x

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up

  2. aLwPQodhLmpIviOq

    • Remove the memory module from the memory-module connector.

  3. 14IqOAVtamlNQBDW
    14IqOAVtamlNQBDW
    wgfBKEs5GAnQUUGD

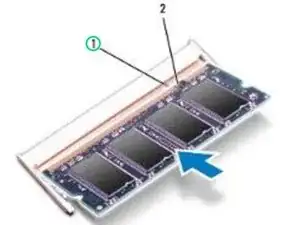

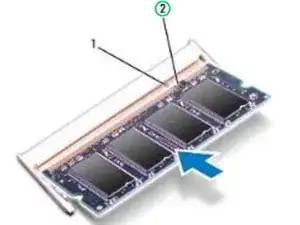

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

  4. NsoXKmQxBfkYBFdh

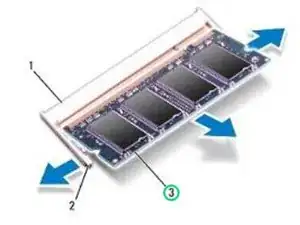

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
