Dell Inspiron 15 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 6 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. XV4EXt6mTUyGQuMV

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.

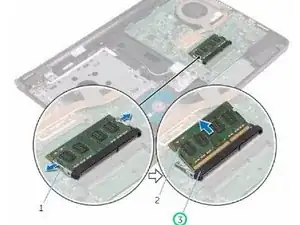

    • Using your fingertips, spread apart the securing clips at each end of the memory-module slot until the memory module pops up.

  2. abcGrUXYuXV65uSI
    abcGrUXYuXV65uSI
    PMaF3WUGneBfUcJD

    • Slide and remove the memory module from the memory-module slot.

  3. uWR4HwQttGdkVxMQ
    uWR4HwQttGdkVxMQ
    QuAYbLtJskgEFPkc

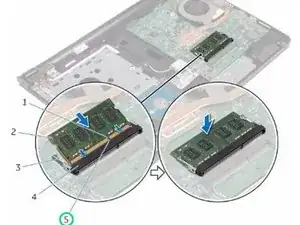

    • Align the notch on the NEW memory module with the tab on the memory-module slot.

  4. khFU2Rqkuxf5vFmu
    khFU2Rqkuxf5vFmu
    II3aP5aRuoMjld5Z

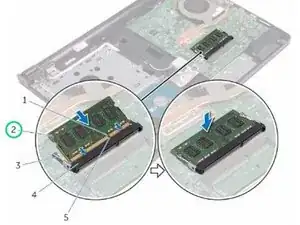

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.
