Einleitung
This replacement guide will explain how to insert a new memory card into the Dell Inspiron 15-3521 laptop. Keep in mind that to perform this replacement, you will be opening the interior of your device, so it is best to perform this replacement in a clean environment.
Werkzeuge
-
-
Flip the laptop over.
-

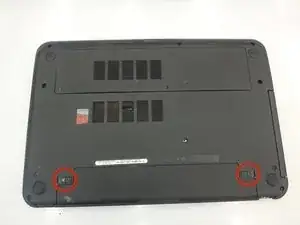

Slide the latches toward the outside of the laptop to unlock the battery.
-

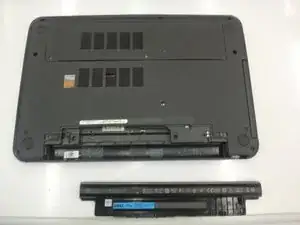

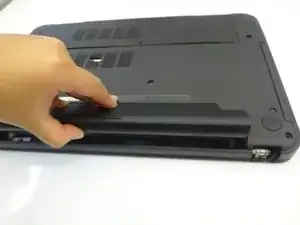

Lift the battery out of the laptop.
-
-
-

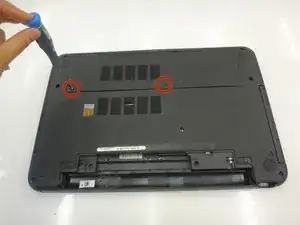

Loosen the two screws attaching the access door to the laptop body
-

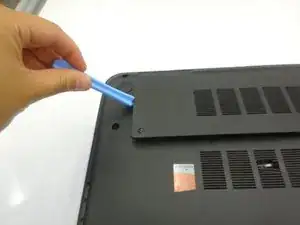

Using a spudger, pry open the access door from the laptop
-

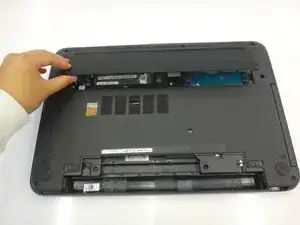

Using your fingers, open and remove the access door from the laptop, exposing the memory cards underneath.
-
-
-

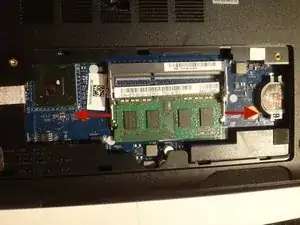

To access the memory cards, push out the latches on the left and right of the memory cards
-

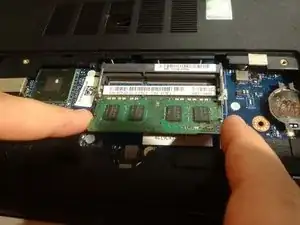

To remove the memory card, pull it out of the tray with the latches still stretched out
-
Insert a new memory card in to the memory card tray, depressing until side latches engage with a click.
-
To reassemble your device, follow these instructions in reverse order.
