Einleitung

Is the RAM in your Dell Inspiron 15-3543 defective or full? If so, here is the guide to fix the problem by simply replacing your RAM. All you need is the standard #0 Phillips Screwdriver head in order to remove the one screw involved with this replacement.

  1. emBLgXkaLK6UKRXd
    emBLgXkaLK6UKRXd
    QT4pRK21bIfIpIei

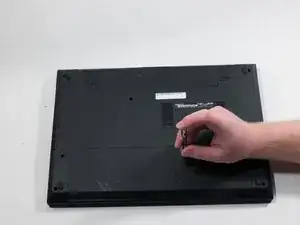

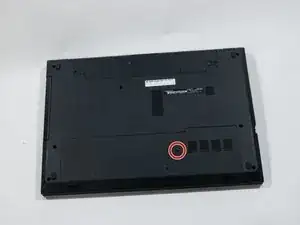

    • Using a #0 Phillips screwdriver, remove the 2.0mm screw from the back of the device beside the vents.

  2. qjbRZ5dDdM6qaXaw
    qjbRZ5dDdM6qaXaw
    sHPdx6LsymJNU4TE
    lvhvkQKJ1WG2DYFZ

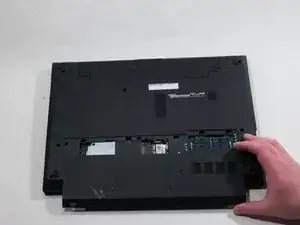

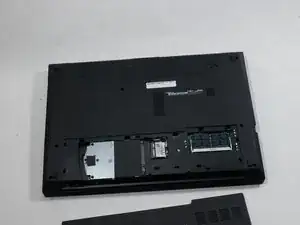

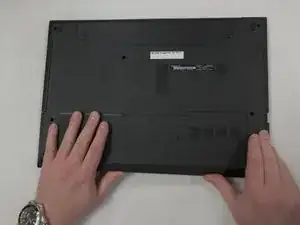

    • Slide the panel off by placing your hands on top and, while using a little force, sliding your hands down.

  3. iFAPNAOlVH16mjJi
    iFAPNAOlVH16mjJi
    Cr6AiIfDuR6YeixT
    stkxgi1BNgJRjVOe

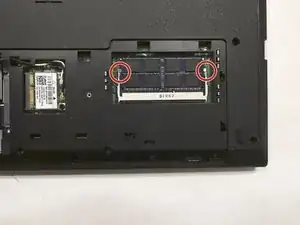

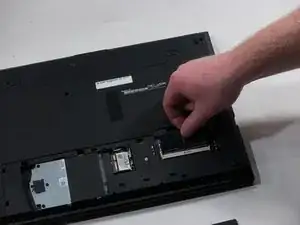

    • Using two fingers, slide the two notches holding the RAM in place outwards.

    • After the notches are moved outwards, the RAM will pop up and it can be pulled out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
