Einleitung
This guide is for removing or replacing a keyboard for the Dell Inspiron 15-5547. This action may need to be taken in order to remove and replace a non-functioning keyboard. You may also need a replacement keyboard component specific to the Dell Inspiron 15-5547 if you intend to replace a defective keyboard. Be careful not to pull the keyboard too quickly or harshly throughout the removal steps in order avoid damaging the connector ribbon cables of the keyboard.
Werkzeuge
-
-

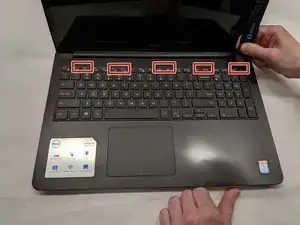

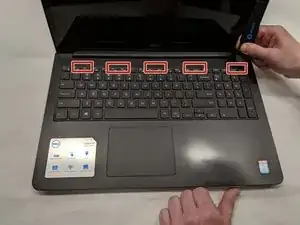

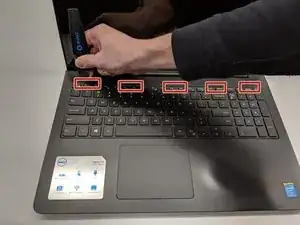

Use the Jimmy to pry and detach the keyboard from the laptop at the following locations.
-

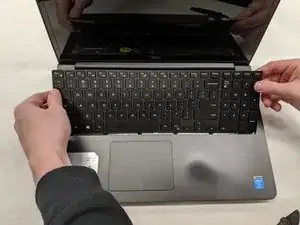

Lift the keyboard from the top and gently detach it from the bottom end.
-
-
-

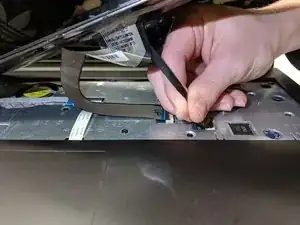

Detach the smaller ribbon cable from the laptop connector base by gently pulling upward on the connector base. This will free the ribbon cable.
-

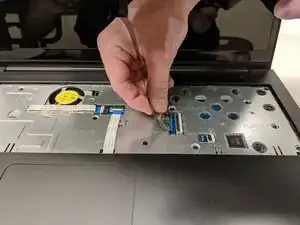

Detach the larger ribbon cable from the laptop connector base in the same manner as the first. This will completely detach the keyboard from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
