This guide is for removing or replacing the RAM component of a Dell Inspiron 15-5547. The RAM (random-access memory) component of a computer is responsible for a computer’s short term memory where data is stored as the processor needs it. RAM components might need to be removed and replaced in order to increase a computer’s short-term memory storage capacity and speed. Be careful with the RAM components as they are fragile. Handle them with care.
Werkzeuge
-
-

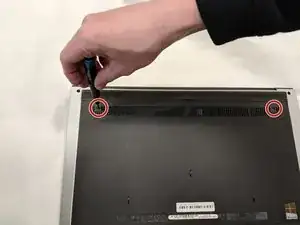

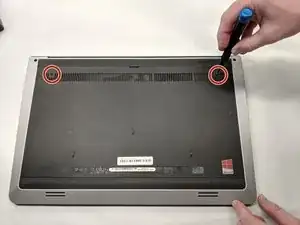

Remove the two M2.5 x 5mm screws on the bottom of the laptop with the Phillips #0 screwdriver as shown.
-
-
-

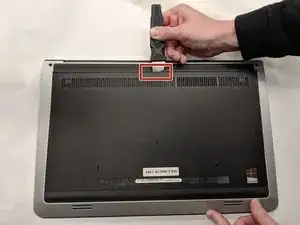

Use the Jimmy to pry off the back cover of the laptop.
-

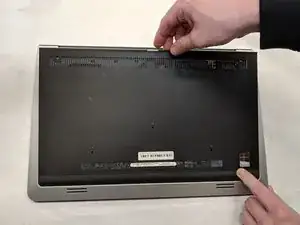

Carefully lift and remove the back cover of the laptop.
-
-
-

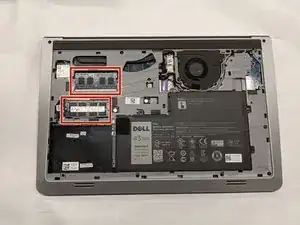

The RAM components of the laptop can be found in the following locations.
-

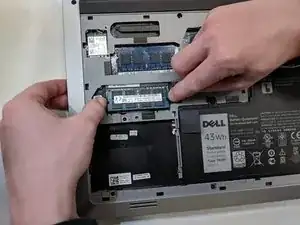

Pull the two side brackets of the bottom RAM component horizontally. This will free the component.
-

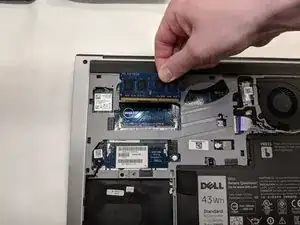

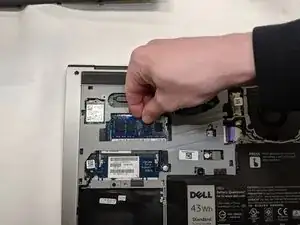

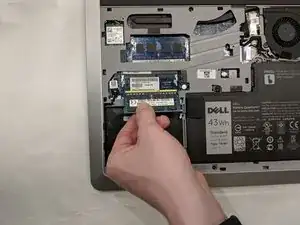

Lift and remove the RAM component from its location.
-
To reassemble your device, follow these instructions in reverse order.
