Dell Inspiron 15-5548 Battery Replacement

Geschrieben von: Hunter Oliver
  • Kommentare: 0
Dell Inspiron 15-5548 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

This is a guide to show you how to replace the Dell Inspiron 15-5548 battery. Make sure that the laptop is unplugged and powered off before beginning this procedure.

  1. NYl6kr5pQ5pUFHPs
    NYl6kr5pQ5pUFHPs
    yWHtMjBkTATYxM1W
    eWyDXKMBgRQHObSu

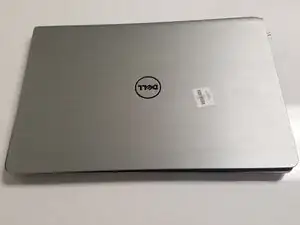

    • Make sure the computer is unplugged and turned off before you start this procedure.

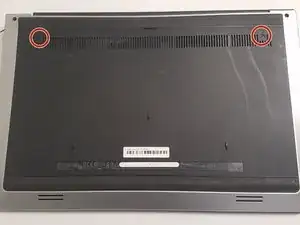

    • Look on the bottom of the computer. Locate the 2 screws. (Picture 1)

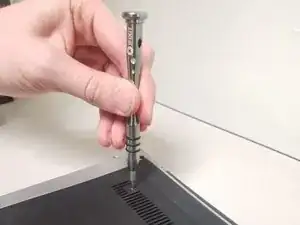

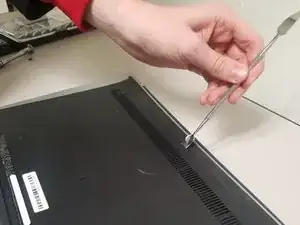

    • Using the Phillips 00 Screwdriver, unscrew both screws, and remove the bottom cover. The bottom cover can be hard to pull off, so you may need to pry it off with a pry tool.

  2. QVsictntEQRxtUbU
    QVsictntEQRxtUbU
    WlIPvpvl5RCudLbN

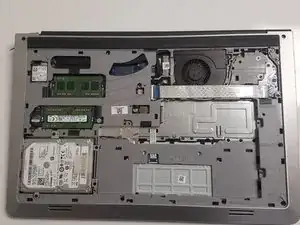

    • Locate the large black battery.

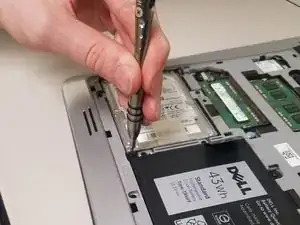

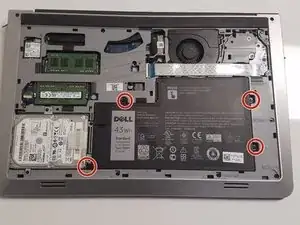

    • Locate the 4 screws on the battery, and remove them using the Philips 00 Screwdriver.

  3. 6SQi52cHPbMbj4P6
    6SQi52cHPbMbj4P6
    cSYqueZiUfWXdknc

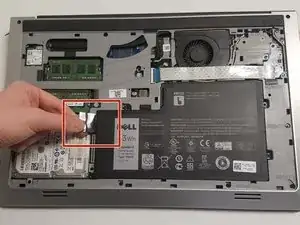

    • Pull up on the release tab.

    • Remove the battery.

Abschluss

To reassemble your device and add in a new battery, follow these instructions in reverse order.
