Dell Inspiron 15-5552 Hard Drive Replacement

Geschrieben von: Mitchell Roberts
  • Kommentare: 0
Dell Inspiron 15-5552 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 15 Minuten

Einleitung

The following guide will give instructions on how to properly replace the hard drive on your Dell Inspiron 15-5552.

  1. TVGVoOfWH54YdkfW

    • Make sure the laptop is powered down before you remove the battery.

  2. hamAmJyStuDPRWCT

    • Locate the battery release switch on the bottom of the laptop.

  3. 51sjPK5gGbYUK4Tp

    • Slide the battery release switch away from the lock symbol towards the “unlock” position.

    • You can tell that the battery is unlocked once you hear a "click."

  4. bGJ5GLkRoFQ2aAsU
    bGJ5GLkRoFQ2aAsU
    vrUMb3QfgfYRypNs

    • Rotate the battery outward by lifting the bottom lip that pops out.

    • Continue rotating the battery towards the top of the laptop until the battery is completely removed.

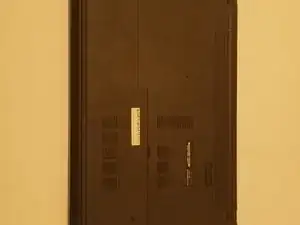

  5. LWcAjE2srIZwRO5r
    LWcAjE2srIZwRO5r

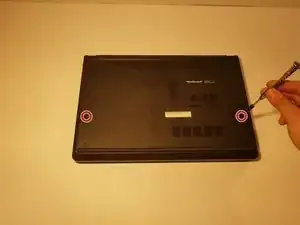

    aYUbFJG3OTsW1vV5

    • Use a JIS #0 screwdriver to unscrew the two 6 mm screws from the back panel.

    • Make sure your device is powered down and unplugged before beginning the replacement.

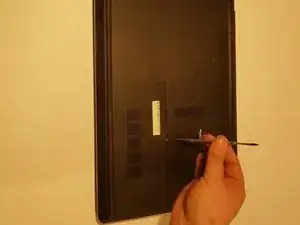

  6. YxoGLIEGlJqAsZpl
    YxoGLIEGlJqAsZpl

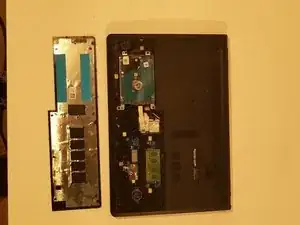

    JUhQUVNhbxCNdQGW

    • Using a spudger, lightly lift the RAM cover up and at an angle, away from the computer.

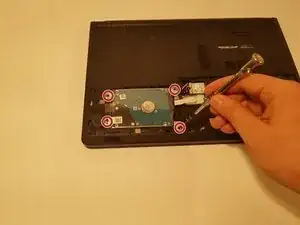

  7. OI3QemKoMys35SSl

    • Remove the four 6 mm JIS #0 screws from the hard drive.

  8. fFSvPlxHkpvr3NGW

    • Lift hard drive out of the computer slightly.

    • Be careful not to tear the ribbon that attaches the hard drive to the computer when lifting it.

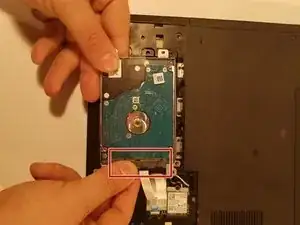

  9. XGajsaqbKmMqpXba
    XGajsaqbKmMqpXba

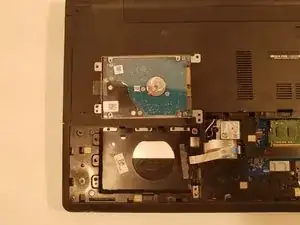

    GTD5PvDC32CHHASD

    • Using two fingers, grab the black connector on the ribbon, and pull until detached.

Abschluss

To reassemble your device, follow these instructions in reverse order.
