Dell Inspiron 15-5552 Memory Replacement

Geschrieben von: Chandler Champion
  • Kommentare: 0
Dell Inspiron 15-5552 Memory Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

The following guide will give instructions on how to properly replace the RAM/Memory on your Dell Inspiron 15-5552.

  1. TVGVoOfWH54YdkfW

    • Make sure the laptop is powered down before you remove the battery.

  2. hamAmJyStuDPRWCT

    • Locate the battery release switch on the bottom of the laptop.

  3. 51sjPK5gGbYUK4Tp

    • Slide the battery release switch away from the lock symbol towards the “unlock” position.

    • You can tell that the battery is unlocked once you hear a "click."

  4. bGJ5GLkRoFQ2aAsU
    bGJ5GLkRoFQ2aAsU
    vrUMb3QfgfYRypNs

    • Rotate the battery outward by lifting the bottom lip that pops out.

    • Continue rotating the battery towards the top of the laptop until the battery is completely removed.

  5. 2OJQJfA1MvVZ6DBk

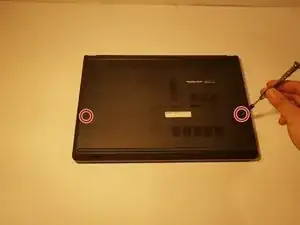

    • Flip the device on its back, locate the screws circled.

  6. MXnq6WE4coGSSvf4

    • Use a J0 screwdriver to unscrew the two, 6mm Phillips screw on the rear-cover.

  7. KNEgGppyoqnJmE1j
    KNEgGppyoqnJmE1j
    NHxfgAgKSm5WwH2n
    rDPeajuWNZid2OAr

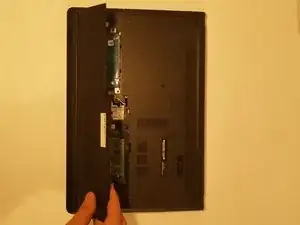

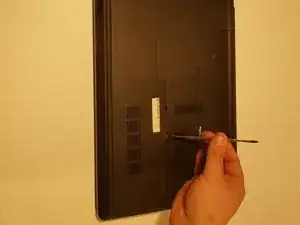

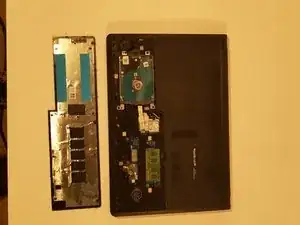

    • Using a spudger, Lightly lift the rear-cover up and at an angle, away from the computer.

  8. 3YLFYfGRwhENgtsi
    3YLFYfGRwhENgtsi
    qbax1lWxoEbwYXMH

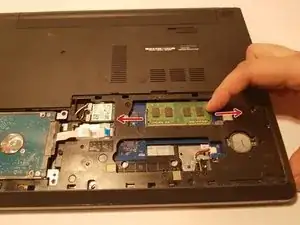

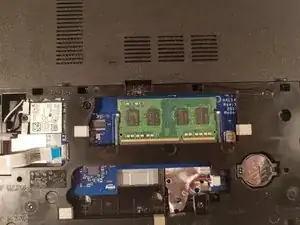

    • Use your fingers to carefully pull the securing clips on the RAM away from each other.

    • The RAM should pop up when the clips are released.

  9. Hu2olG53QKNTdjEU
    Hu2olG53QKNTdjEU
    eL6uZRqRKlxV2Tvd

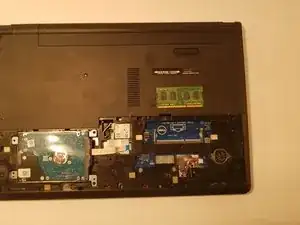

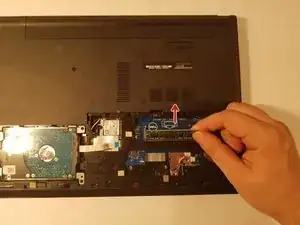

    • Remove the dislodged up RAM by pulling it away from the connection.

    • If it does not pop up, pry it out in a steady and straight direction.

Abschluss

To reassemble your device, follow these instructions in reverse order.
