Dell Inspiron 15-5558 Screen Replacement

Geschrieben von: Adam Lourenco

Kommentare: 4

Dell Inspiron 15-5558 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

If your device screen breaks, you might need to replace it. The screen is the part of the device when images are displayed. This guide shows you how to replace a broken or faulty screen

Werkzeuge

Schritt 1

Make sure you turn off the device before starting.

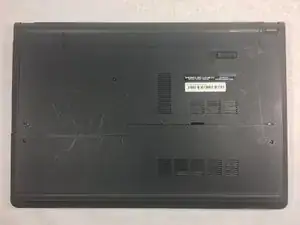

Flip the device over and so the white bar code is on the right.

Schritt 2

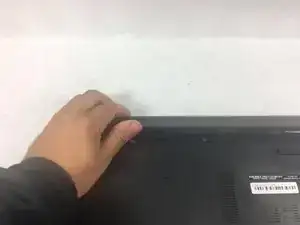

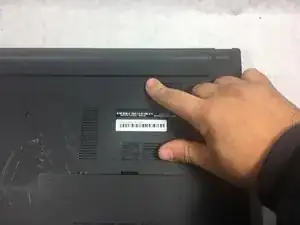

Slide the battery latch all the way to the left until you hear the click and see the battery prop up.

It is no big deal but try to erase the service tag.

Somecan even summon the Dell support to you by it and make a fuss.

Why am I saying this? this is internet and there are various people. Try to be safe before rant.

Kind-hearted, spirited Man -

Schritt 3

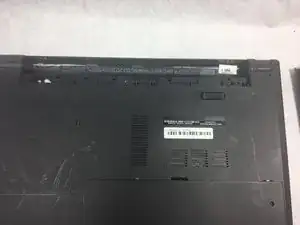

Rotate the battery up and remove it.

Schritt 4

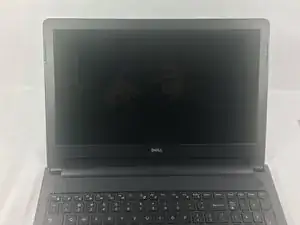

Open device so it is at least opened at a 90 degree angle.

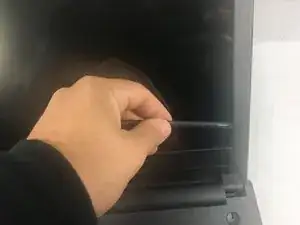

Wedge a spudger between the screen and the plastic frame.
Push in the spudger and push down to pop the frame from the pins.
Repeat around the whole frame.

Will need a heat gun. The Bezel is glued with double sided tape.

Nicholas Cain - 02/02/21

Schritt 5

Once all the pins are off, remove the frame by pulling it away from the screen.

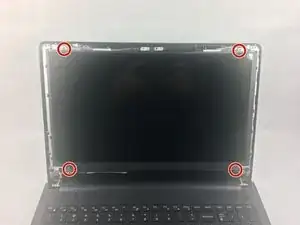

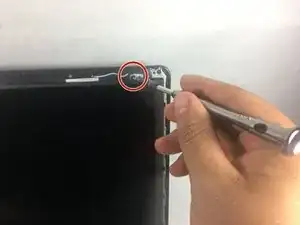

Using a Phillips #0 screwdriver, unscrew the four 3mm screws holding the screen in place.

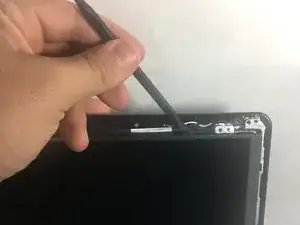

Push the spudger behind the screen and push down to remove the screen.
