Dell Inspiron 15-5567 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 3
Dell Inspiron 15-5567 Display Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

9 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. LccDmnVxxQWuwPjo

    Step one incorrectly identifies the display cable as the battery cable. I think I blew the mobo reattaching the display cable. A small pop and some ozone scent leads me to believe that.

    Quietech -

    Make your 1st step removing the back cover. Dell Inspiron 15-5567 Back Cover Replacement

    Quietech -

  2. ksSZLQZgxPHISUUU

    • Note the display cable routing and remove the cable from its routing guides.

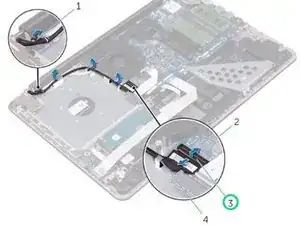

  3. eXyV5HrQigfc3MTE
    eXyV5HrQigfc3MTE

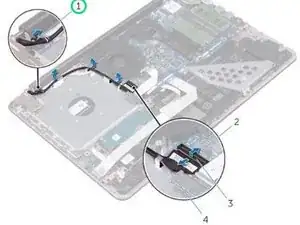

    6hLTNDQcm2OKVD1d

    • Lift the latch and disconnect the display cable from the system board.

  4. qxStV3EmW4LAJcZn

    • Remove the screws that secure the display hinges to the palm rest and keyboard assembly.

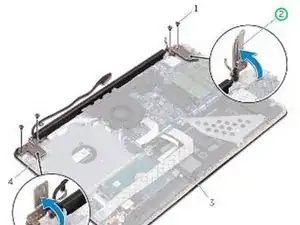

  5. w4Z6GpQ5kWgwY2Uj

    • Open the display hinges.

  6. ZhTC45Ru4UvT1Hhg

    • Lift the palm rest and keyboard assembly off the display assembly.

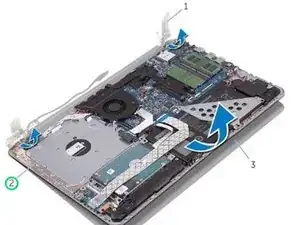

  7. WgqktRXYKKNbSFlM

    • Place the palm rest and keyboard assembly on the NEW display assembly.

  8. 1nhw1ynMdVRuafFe

    • Using the alignment posts, press the display hinges down on the palm rest and keyboard assembly.

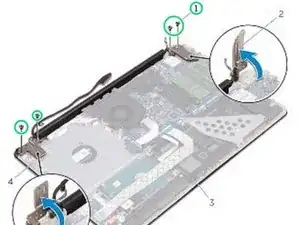

  9. WlPFNZhbPVJvP1Cm

    • Replace the screws that secure the display hinges to the palm rest and keyboard assembly.

  10. yIDJYbwjEterQNFZ

    • Route the display cable through the routing guides on the palm rest and keyboard.

  11. WuDTgfXMmOtuDoIA

    • Slide the display cable to the connector on the system board and close the latch to secure the cable.

    • Slide the battery cable to the connector on the system board.
