Dell Inspiron 15-7537 Keyboard Replacement

Geschrieben von: Jean Whitmore
  • Kommentare: 6
Dell Inspiron 15-7537 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the keyboard if you have determined your keyboard issues may be resolved by replacing the keyboard.

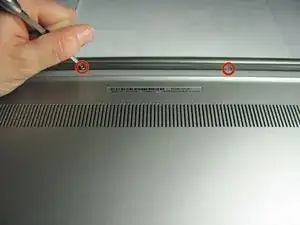

  1. KR3UTnhthVOYo14V

    • Make sure the display is closed. Then, flip the computer over so that you can see the bottom cover.

    • Loosen the two 5 mm Phillips #0 on the upper edge of the cover.

    • These screws will stay captive to the case.

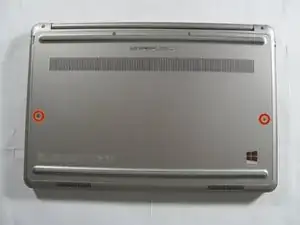

  2. FCNAf33qgg3Fg6pv

    • Remove the two 5 mm interior screws that connect the cover to the assembly using the same Philips head screwdriver from the previous step.

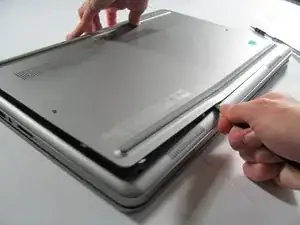

  3. GkvxKq5IraJdRrBe

    • Use a spudger to remove the base cover from the rest of bottom cover.

    As it is not clearly visible in the picture: You should start to open the base cover at the screen side, to avoid breaking the plastic guides of the base cover. A flat dough scraper is a pretty good tool for that.

    David Jatzke -

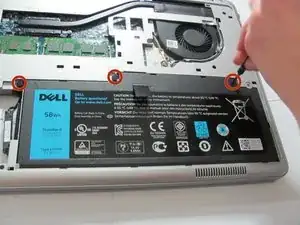

  4. GjwMYTaLrpRia5Ul

    • Remove the three 5mm Phillips #0 screws that keep the battery connected to the computer.

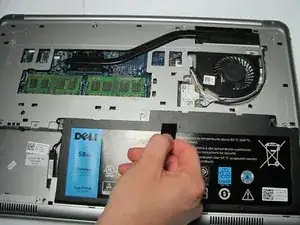

  5. s2ymvMZSlGQwEwdL

    • Ground the system board by turning over the computer, opening the display, and holding the power button down for about 5 seconds before proceeding.

    • Using the pull tab on the battery, lift the battery out of the computer.

    These instructions look as if you ground the board first and then remove the battery.

    I think it should be the other way round. First, remove the battery. Secondly, ground the board.

    Yuri Kalnishkan -

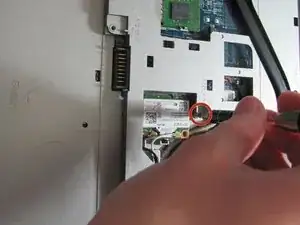

  6. RLEYJM2PHvpYbheN

    • Remove the single 5mm screw that connects the keyboard to the palm assembly with the Phillips head screwdriver.

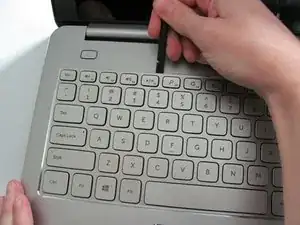

  7. DCHmVaVFRhraRjJD

    • Flip over the computer and open the display as far as it can go.

    • Use the spudger to remove the keyboard from the palm assembly.

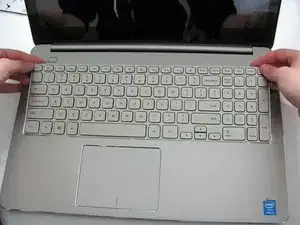

  8. h2KwVZHFTXttm5uW

    • Gently flip over the keyboard and place it on the palm rest assembly.

    • Lift the connector latches and disconnect the keyboard and the keyboard back-light cables.

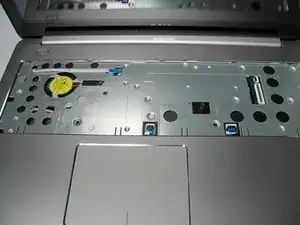

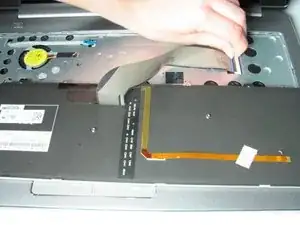

  9. UehrbIy4vvrQI6ai
    UehrbIy4vvrQI6ai
    IgG4KRLRJ2AIB3Oh
    FHXCWTkFUGTlVmUM

    • Take the keyboard off the palm rest assembly.

    I had problems open and close the clips for the Keyboard-cables. ^^ Any tips how to open and close? Thanks in advance.

    Marco Wolfgarten -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jean Whitmore

Mitglied seit: 22/01/15

972 Reputation

3 Kommentare

Great guide, thanks for the help!

Patrick S -

Thanks It’s Useful

ahmed omar -

It is important to note that the little black clips on the ends of the keyboard wires SWIVEL UP! I broke mine because nothing in this guide told me how to get the wires out properly.

benton.addison -
