Dell Inspiron 15-7537 RAM Replacement

Geschrieben von: Jean Whitmore
  • Kommentare: 1
Dell Inspiron 15-7537 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the RAM if you would like to upgrade the RAM, or replace it if there is damage.

  1. KR3UTnhthVOYo14V

    • Make sure the display is closed. Then, flip the computer over so that you can see the bottom cover.

    • Loosen the two 5 mm Phillips #0 on the upper edge of the cover.

    • These screws will stay captive to the case.

  2. FCNAf33qgg3Fg6pv

    • Remove the two 5 mm interior screws that connect the cover to the assembly using the same Philips head screwdriver from the previous step.

  3. GkvxKq5IraJdRrBe

    • Use a spudger to remove the base cover from the rest of bottom cover.

    As it is not clearly visible in the picture: You should start to open the base cover at the screen side, to avoid breaking the plastic guides of the base cover. A flat dough scraper is a pretty good tool for that.

    David Jatzke -

  4. WGaKaVkCUsXJS1hO
    WGaKaVkCUsXJS1hO
    t5NDiXwbeyPlnaqL

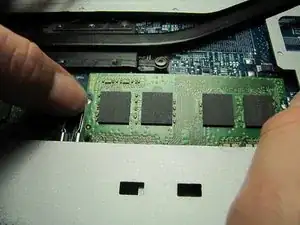

    • Gently pull apart clips on the ends of the memory module until the memory module pops up.

  5. aMm1vhFuuHSkIv4s

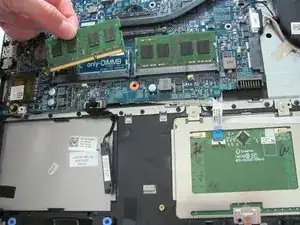

    • Pull the RAM out at a 45 degree angle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
