Dell Inspiron 15-7547 Bottom Cover Replacement

Geschrieben von: Claro
  • Kommentare: 0
Dell Inspiron 15-7547 Bottom Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

This guide shows how to unscrew and remove the bottom cover of your Dell Inspiron 15-7547, allowing access to the underside of the computer where all the important components are.

  1. qrSoofefwR1quHyr

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

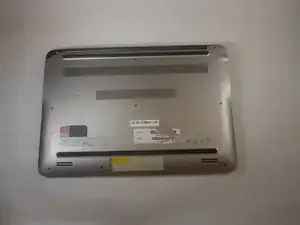

    • Close the display and flip the laptop on its back.

    • Loosen the ten 5.0 mm-long Phillips #0 screws.

    • The four screws marked with orange will remain captive to the cover.

  2. uoRnFPYREFtn1URa

    • Use a spudger to pry up and loosen the back cover.

    • Remove the back cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
