Dell Inspiron 15-7547 CPU Fan Replacement

Geschrieben von: Isaac Brooks
  • Kommentare: 1
Dell Inspiron 15-7547 CPU Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

7 - 9 Minuten

Einleitung

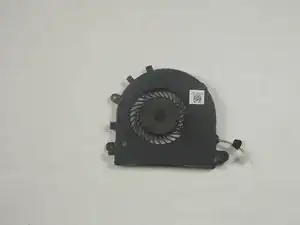

The CPU fan makes sure your CPU does not overheat. This guide shows the process of removing the CPU fan from the Dell Inspiron 15-7547.

  1. qrSoofefwR1quHyr

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Close the display and flip the laptop on its back.

    • Loosen the ten 5.0 mm-long Phillips #0 screws.

    • The four screws marked with orange will remain captive to the cover.

  2. uoRnFPYREFtn1URa

    • Use a spudger to pry up and loosen the back cover.

    • Remove the back cover.

  3. QakopZ2fXTOoo1S6
    QakopZ2fXTOoo1S6
    SwnZYIWV3FMZvbfv

    • Remove the two 5.0 mm-long Philips #0 screws from the fan.

    • The screw marked in orange will remain captive to the fan.

    The top left screw did come out, watch for the display wire that is underneath some metal tags on the fan.

    Matthew Volpe -

  4. oVwSDYBv4UNs1vVN
    oVwSDYBv4UNs1vVN
    qBrIiZFL1BOVwZ3I

    • Disconnect the wire that connects the fan to the motherboard. This can be found under the flap directly to the left of the fan.

  5. Mp4iSHTI5ixUNK5v

    • Lift the fan out of the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
