Dell Inspiron 15-7547 LCD Assembly Replacement

Geschrieben von: Kevin Smith
  • Kommentare: 0
Dell Inspiron 15-7547 LCD Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide shows how to remove the LCD assembly from a Dell Inspiron 15-7547

  1. qrSoofefwR1quHyr

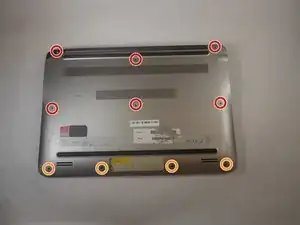

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Close the display and flip the laptop on its back.

    • Loosen the ten 5.0 mm-long Phillips #0 screws.

    • The four screws marked with orange will remain captive to the cover.

  2. uoRnFPYREFtn1URa

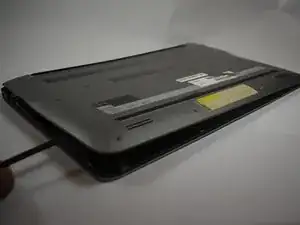

    • Use a spudger to pry up and loosen the back cover.

    • Remove the back cover.

  3. mBXGEY6YZ1fpUGlH
    mBXGEY6YZ1fpUGlH
    FVcaGKEEQKq1HO5p

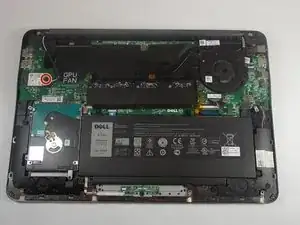

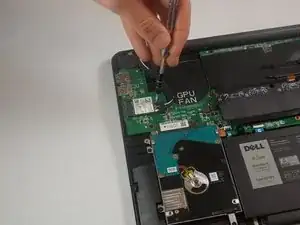

    • Remove the 3.0 mm-long Philips #0 screw at the end of the Wifi-Card

  4. ePALo2XtKpbbMPVI
    ePALo2XtKpbbMPVI
    OixvQFlKqSHpO1IY

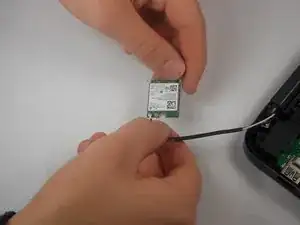

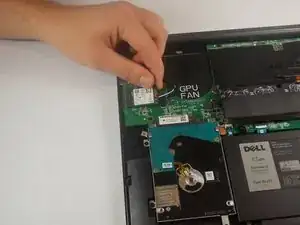

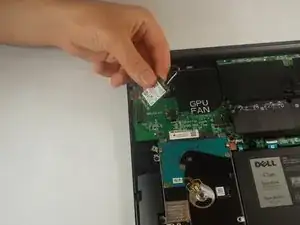

    • Remove the Wifi-Card from its socket by pulling away and up from the connector.

  5. S5KwmRNjZJARObAN
    S5KwmRNjZJARObAN
    rtEHBPA14npRQAcI

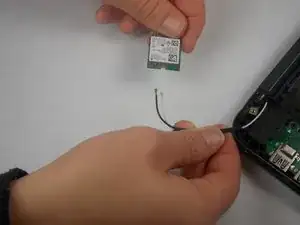

    • Disconnect the white and black cables from the Wifi-Card.

    • Make a note of which wire goes where for reconnecting them to the replacement card.

  6. WXVcnmAjTQKAJvnQ
    WXVcnmAjTQKAJvnQ
    FVOuSgKqjLBdQchX
    PKAAskyGGhJFPXmm

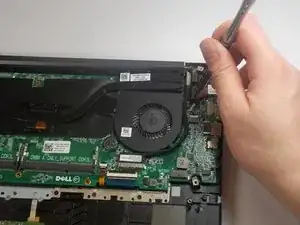

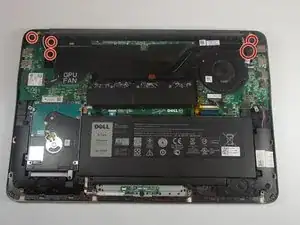

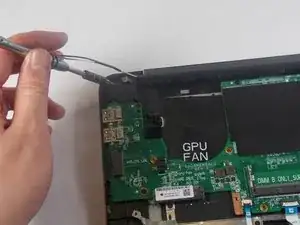

    • Remove the six 7.0 mm-long Philips #0 screws that mount the hinges.

  7. YiToio5LjoQWnQYM
    YiToio5LjoQWnQYM
    W1DUfUQfTclyIXkC
    JRlbtteThRvIUGUT

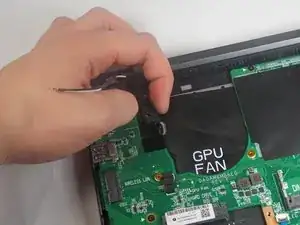

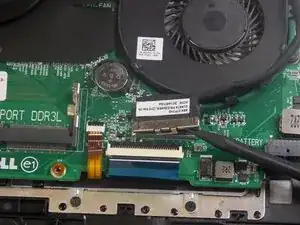

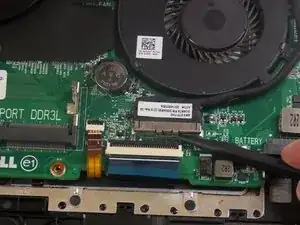

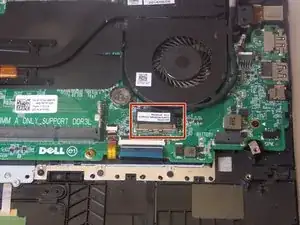

    • Use a spudger to unlatch and unplug the display cable.

    • There will be a notch on the side of the connector.

  8. ot6ZHYFyUtMSqckN
    ot6ZHYFyUtMSqckN
    uVoqAsECa1XRhgCj
    3HwFqZGDMirgMlVW

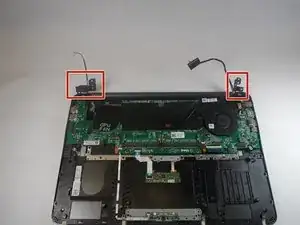

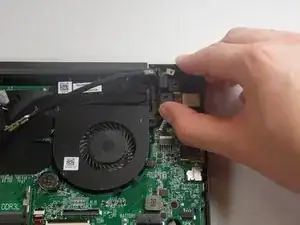

    • Raise the left and right hinges.

  9. GBpGYPIaitGfKVBF

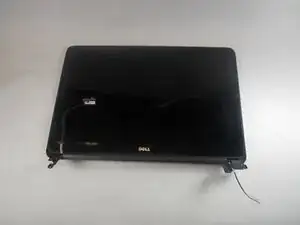

    • Remove the LCD display assembly from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
