Einleitung

Use this guide to remove the motherboard on a Dell Inspiron 15-7547.

  1. qrSoofefwR1quHyr
    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    • Close the display and flip the laptop on its back.

    • Loosen the ten 5.0 mm-long Phillips #0 screws.

    • The four screws marked with orange will remain captive to the cover.

  2. uoRnFPYREFtn1URa
    • Use a spudger to pry up and loosen the back cover.

    • Remove the back cover.

  3. gH2OcB5cnwXB3fZS
    gH2OcB5cnwXB3fZS
    IxHCSBX6ivuDqJdW
    • Remove the five 5.0 mm-long Philips #0 screws that connect the battery to the case.

  4. rDMWPfXWcCLbIKtU
    rDMWPfXWcCLbIKtU
    2kLxAgSNsxjjZt6F
    • Lift the battery out of the case.

  5. x3WeE2ehFi64COQ3
    x3WeE2ehFi64COQ3
    OFv6qJulKruaulEW
    osFGosHA2yoCaEiV
    • Pull the battery cable's pull tab towards the battery to disconnect it from the motherboard.

    • Pull parallel to the motherboard, not straight up.

    • Most of the cable is attached to the case with adhesive, which may cause slight resistance.

    • Remove the battery.

  6. mBXGEY6YZ1fpUGlH
    mBXGEY6YZ1fpUGlH
    FVcaGKEEQKq1HO5p
    • Remove the 3.0 mm-long Philips #0 screw at the end of the Wifi-Card

  7. ePALo2XtKpbbMPVI
    ePALo2XtKpbbMPVI
    OixvQFlKqSHpO1IY
    • Remove the Wifi-Card from its socket by pulling away and up from the connector.

  8. S5KwmRNjZJARObAN
    S5KwmRNjZJARObAN
    rtEHBPA14npRQAcI
    • Disconnect the white and black cables from the Wifi-Card.

    • Make a note of which wire goes where for reconnecting them to the replacement card.

  9. gxwpIFi3QyIZKPJQ
    gxwpIFi3QyIZKPJQ
    uPKU2r1WwwQgaDjn
    • Remove the four 5.0 mm-long Philips #0 screws connecting the hard drive to the chassis.

  10. rSVUUITPnLNAnbXg
    rSVUUITPnLNAnbXg
    coyAQQMJIYVXEEZo
    • Disconnect the hard drive from the motherboard by placing your fingers at the back, and pulling forward towards the front of the chassis.

  11. HraQWkqK2KFkIuXY
    • Lift the hard drive out of the chassis.

  12. QakopZ2fXTOoo1S6
    QakopZ2fXTOoo1S6
    SwnZYIWV3FMZvbfv
    • Remove the two 5.0 mm-long Philips #0 screws from the fan.

    • The screw marked in orange will remain captive to the fan.

    The top left screw did come out, watch for the display wire that is underneath some metal tags on the fan.

    Matthew Volpe -

  13. oVwSDYBv4UNs1vVN
    oVwSDYBv4UNs1vVN
    qBrIiZFL1BOVwZ3I
    • Disconnect the wire that connects the fan to the motherboard. This can be found under the flap directly to the left of the fan.

  14. Mp4iSHTI5ixUNK5v
    • Lift the fan out of the chassis.

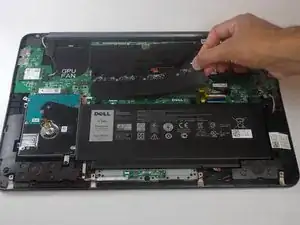

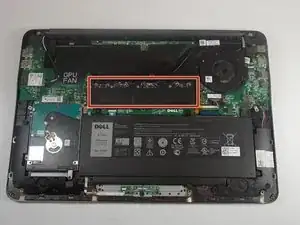

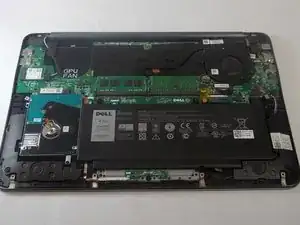

  15. GKkeDnwbSKGLHNmv
    GKkeDnwbSKGLHNmv
    6CtaS4CBRiIhM3vT
    kX1TTL1kMEghHkPh
    • Remove the plastic heat spreader that covers the RAM sticks.

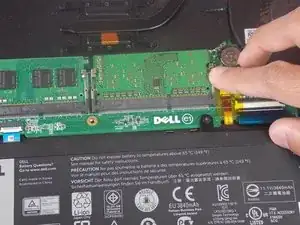

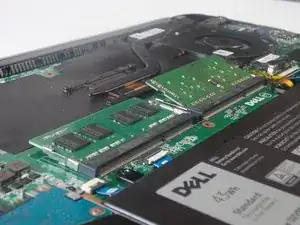

  16. U5dpZptJYcsYQNKN
    U5dpZptJYcsYQNKN
    fsqdvZRHOFTmo3CM
    • Release the clamps on each side of the RAM sticks by pushing away from the center.

    • When done properly the RAM stick should pop up.

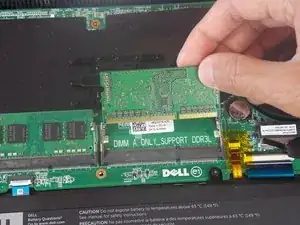

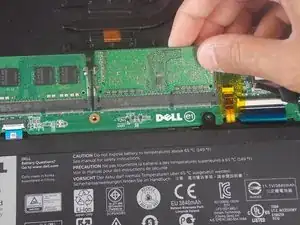

  17. kpllMQ1GRM5DdpjC
    kpllMQ1GRM5DdpjC
    QxMjDeVaENjBkTFC
    • Pull the RAM stick in a straight line out of the socket.

  18. WXVcnmAjTQKAJvnQ
    WXVcnmAjTQKAJvnQ
    FVOuSgKqjLBdQchX
    PKAAskyGGhJFPXmm
    • Remove the six 7.0 mm-long Philips #0 screws that mount the hinges.

  19. YiToio5LjoQWnQYM
    YiToio5LjoQWnQYM
    W1DUfUQfTclyIXkC
    JRlbtteThRvIUGUT
    • Use a spudger to unlatch and unplug the display cable.

    • There will be a notch on the side of the connector.

  20. ot6ZHYFyUtMSqckN
    ot6ZHYFyUtMSqckN
    uVoqAsECa1XRhgCj
    3HwFqZGDMirgMlVW
    • Raise the left and right hinges.

  21. GBpGYPIaitGfKVBF
    • Remove the LCD display assembly from the laptop.

  22. NfZAWHHcsSppriwj
    NfZAWHHcsSppriwj
    dedwcnGO2Tlq1CsZ
    uQFpejidE1OsCngp
    • Unlatch the ribbon cable by pulling the white release up.

    • If this proves to be difficult using your fingers, try a plastic spudger.

    • Hold the blue flap and pull to unplug the cable.

  23. dLDRpbLAcUSKCcpe
    dLDRpbLAcUSKCcpe
    LIue1CdBeCPyJQiV
    1eCiaiXCIop1qKCP
    • Unlatch black release on the ribbon cable.

    • Hold the blue flap to unplug the cable.

  24. aslATmMvVZWBRprT
    aslATmMvVZWBRprT
    2e5QEWmGaBuJFiw6
    EtTNjleMCkEy1okR
    • Unlatch the ribbon cable by pulling the black release up.

    • Unlike the others, this release is found at the back.

    • Hold the flap and unplug the cable.

  25. wZX2dI3ju1MFBRUV
    wZX2dI3ju1MFBRUV
    aXKRPPc4rclgtBwK
    DNOdMPLjLu1NkWMO
    • Unlatch the ribbon cable by pulling the black release up.

    • Unlike the others this release is found at back.

    • Hold the blue flap and unplug the cable.

  26. PMpEmqwU1gOXNU1x
    PMpEmqwU1gOXNU1x
    4aqvvxyDQmeIUuBF
    YLpRIBDNk1der2ed
    • Unplug the DC jack cable.

  27. WSrN5uZpOFGaqrA2
    WSrN5uZpOFGaqrA2
    eNGZUYfuJjvBB3DY
    • Remove the seven 3.0 mm-long Philips #0 screws that secure the motherboard.

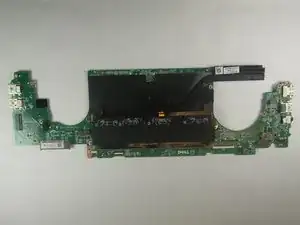

  28. 1uOKyxdjZge1hWTH
    • Remove the motherboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
