Dell Inspiron 15-7548 Display Replacement

Geschrieben von: Phillip Johnson

Kommentare: 2

Dell Inspiron 15-7548 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten - 2 Stunden

Einleitung

This guide covers the LCD replacement process in detail for the Dell 15 - 7548 model laptop. The steps cover disassembly through reassembly using a professional process in a professional environment

Werkzeuge

Ersatzteile

Original LCD Frame Adhesive

Schritt 1

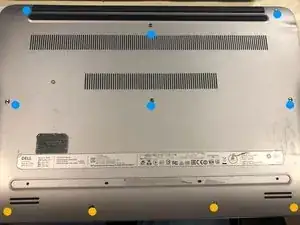

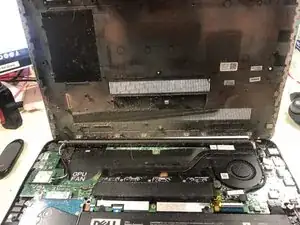

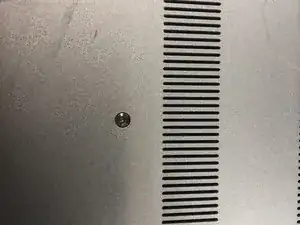

Loosen the four 2x3mm captive screws (yellow) on the bottom of the shell. These screws will not come out.
Unscrew the six 2.5x6mm (blue) screws and remove them using a Phillips #1 screwdriver. The center screw is magnetized and will drop out when the laptop is turned upside down. It can be difficult to get out otherwise.

Schritt 2

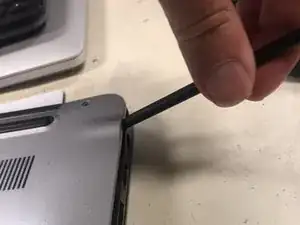

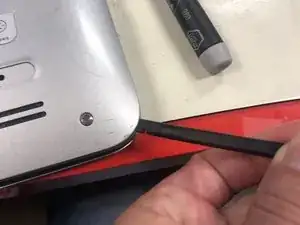

Remove the clamshell from the top down using a smudging tool. The shell should come off fairly easily without much resistance.

Schritt 3

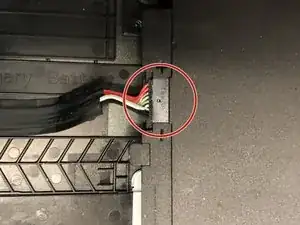

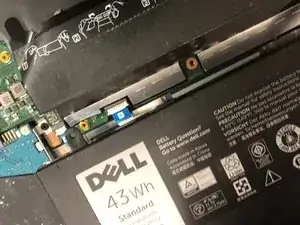

Disconnect the Battery from the mainboard to ensure power is not running through the board during the repair.

Schritt 4

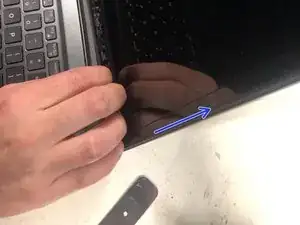

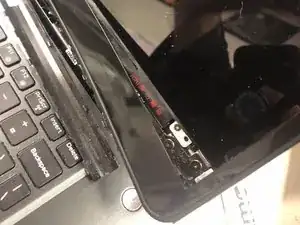

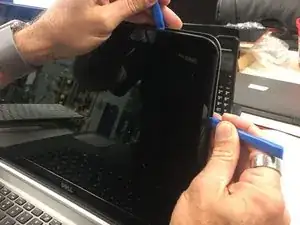

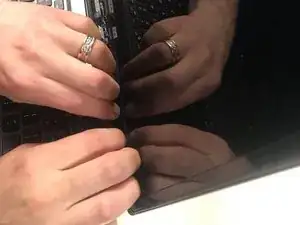

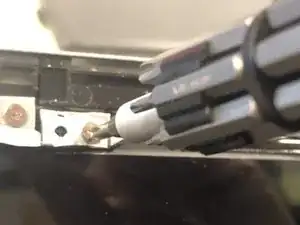

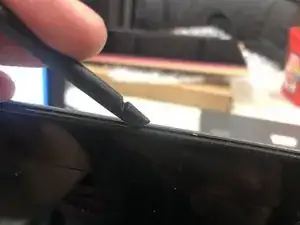

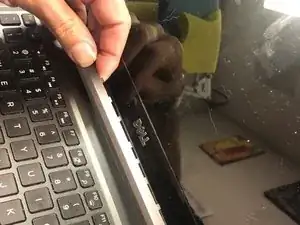

Using two plastic removal tools or a spudger, gently work around the LCD bezel until it is free from the LCD case. Apply heat as necessary, however, use caution as heat can warp the bezel.

Thank You for the guide - very helpful. I wish it contained greater detail regarding the use of heat to loosen the adhesive. Let me reiterate; I appreciate all the effort you contributed. The last thing I want to do is complain but in my mind successfully separating the screen from the assembly "could be" the most important step in the entire procedure. JMHO DSwinhart

admin -

Schritt 5

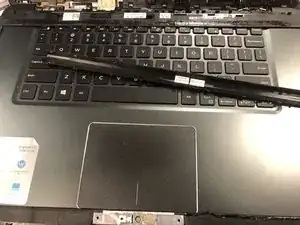

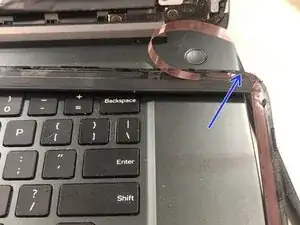

Remove the plastic bracket that sits between the LCD and the keyboard.

Schritt 6

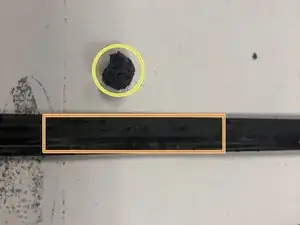

Clean off all old adhesive from the LCD bezel. Roll the adhesive into a ball and discard.

Schritt 7

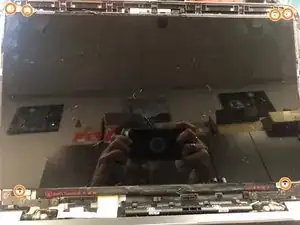

Remove the 6 screws which hold the LCD to the mount.

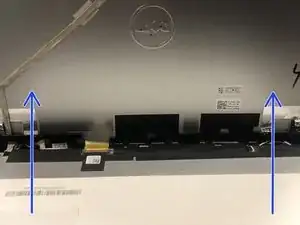

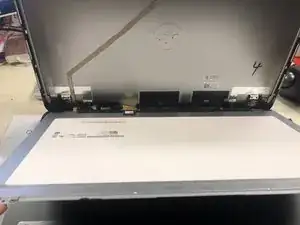

Use a spudge tool to check the amount of tension between the LCD and the mount. If the LCD comes away from the mount easily, remove gently, lower from the top down (pull towards you) and rest it on the keyboard.
If the LCD shows signs of tension, do not force it off of the frame. Use either a heat gun or dehydrator (preferable) to loosen the adhesive behind the panel.
If placing in a dehydrator, leave the laptop (WITHOUT BATTERY) for 30 minutes at high heat.
When removing from the dehydrator (if required) move quickly to remove the LCD from the frame. The heat will dissipate quickly,

Schritt 8

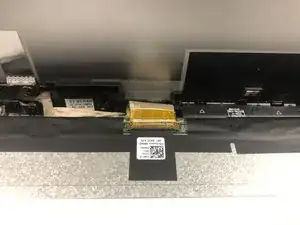

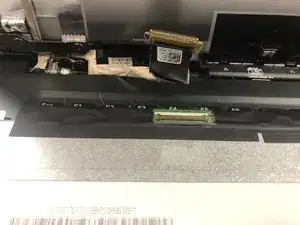

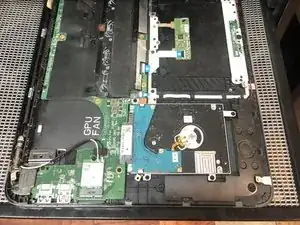

Once the LCD is removed from the frame and has been set on the keyboard, peel back the black adhesive, which will reveal the LCD connector.

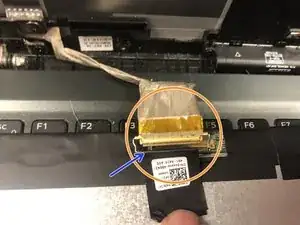

Flip the silver tab (blue arrow) and disconnect the cable (Orange Circle) from the old LCD.
Once removed, discard the old LCD and prepare the new LCD for installation. (remove from wrap, etc)
