Dell Inspiron 15-7548 Speaker Replacement

Geschrieben von: brianna cordoway
  • Kommentare: 0
Dell Inspiron 15-7548 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 7 Minuten

Einleitung

Is the sound coming out of your laptop distorted or unclear? Consider using this guide to replace the speakers in your device.

  1. knLVFeuIYeP2ABLa
    knLVFeuIYeP2ABLa
    YLShUY4tnrdyWVtM

    • Remove the six 6 mm screws from the back panel with a Phillips #1 screwdriver.

    • Loosen the four captive screws at the bottom using a Phillips #1 screwdriver.

    • The four screws on the bottom are captive screws and cannot be removed.

  2. PAVmaqoSkSONEdWP
    PAVmaqoSkSONEdWP
    cJuFK4B4gT5MdqFY

    • Pry out the back panel using the flat head side of the spudger.

    • Do not insert the spudger more than half an inch when separating the bottom and right side of the back panel.

  3. 6nBKjSecHLKFqmG4
    6nBKjSecHLKFqmG4
    RGPwW1rL1njaWSHS

    • Disconnect the battery from the motherboard by pulling the black tab attached to the cable.

  4. XWK2RcBBIAViiwXo
    XWK2RcBBIAViiwXo
    nUus4DNGDF3TwJkU

    • Remove the four 2.5x6mm screws using a Phillips #1 screwdriver.

  5. FABsMMftpuXebNd4

    • Remove the ribbon cable by pulling it out.

  6. qPhIkAtSkmXNmcSW
    qPhIkAtSkmXNmcSW
    IenbYb1bGHiLdRYJ

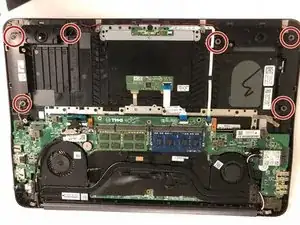

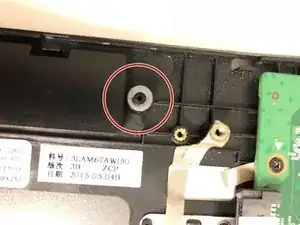

    • Remove the compression caps by using the spudger.

  7. jcFhLUGgad3Ob6AN

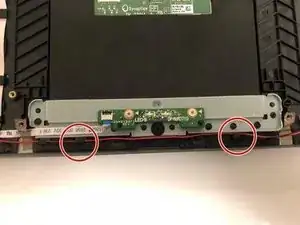

    • Untangle the wire from the plastic clips and remove the speakers from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
