Dell Inspiron 15-7559 SSD Replacement

Geschrieben von: Trenton Greevebiester
  • Kommentare: 1
Dell Inspiron 15-7559 SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

How to replace the SSD for the Dell Inspiron 15-7559

  1. pCPOGYwtt2sEmNAi

    • Turn off the computer.

    • Disconnect the charging cable from the computer.

    • Failure to turn off the device and disconnect the cable could lead to personal injury or device damage.

    • Flip the computer upside down.

  2. bEsgli1nGIRVM53V
    bEsgli1nGIRVM53V
    vxi2FCU5oSL12qPL
    VqYWycwHmm2EKXh1

    • Remove the captive screw located on the top section of the back panel, using a Philips #1 screwdriver.

    • Keep in mind that the screw cannot be fully removed from the panel, even when fully loosened.

  3. EwJLSUnkEsQXgcr4
    EwJLSUnkEsQXgcr4
    MAiWudWCDfWtvTwI
    vfUoV4fgJhONlPDy

    • Use the blue, plastic opening tool to gently pry a section of the back panel open.

    • Next slide the opening tool around the back panel to disconnect the clips holding the panel in place.

    • After the clips have been disconnected, the back panel can then be easily lifted off the computer.

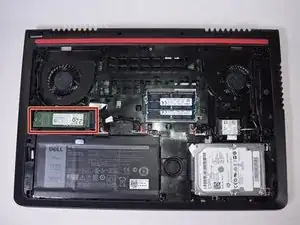

  4. 1FTVwJMHZUEcQxUn

    • Locate the SSD, it is located in the center on the far left.

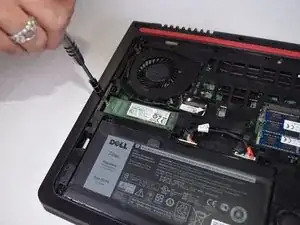

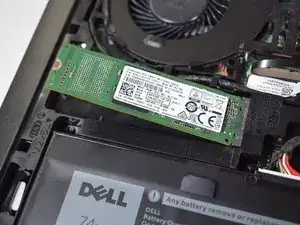

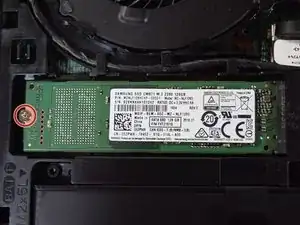

  5. wJuA5ThuDqX1svss
    wJuA5ThuDqX1svss
    vZpMPfHQOaYjbHUb
    4KlRqZZtjuWnnyiu

    • Unscrew the 3mm Philips #1 screw that is holding the SSD in place.

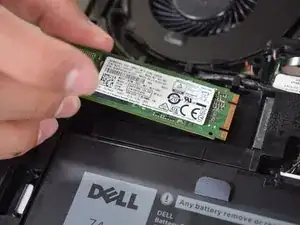

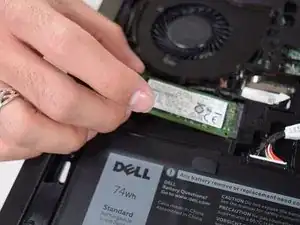

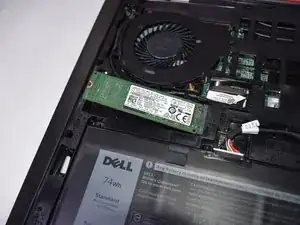

  6. KreIGauXglAmEtZa
    KreIGauXglAmEtZa
    25T32dkGnajwDkGO
    TwO3xVExygLpsNDu

    • Gently pull out the SSD, horizontally along the computer to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Trenton Greevebiester

Mitglied seit: 19/10/17

1536 Reputation

Ein Kommentar

It would be helpful to know what types of SSD are supported. I’ve looked through the service manuals, and it doesn’t list what type it is. Some comments on other sites have implied it MUST be a SATA drive, not NVME, but more information than that is still hard to get (and I’m not completely certain the fact I list is correct, either…).

Russell Andres -
