In this guide, we will be showing you how to remove and replace the Memory Module.

  1. SIA5yarVYASsBqlL
  2. WFsdAkJHPPtnOjXm

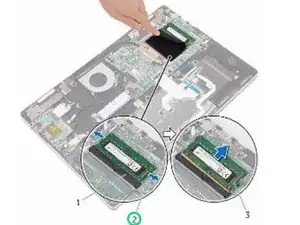

    • Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

  3. DGyl6lfkIX22K5UC
    • Remove the memory module from the memory-module slot.

  4. jhV3ISVVjrQB3G54

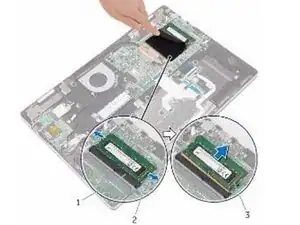

    • Lift the Mylar to access the memory-module slot.

  5. wOCLV6I6b5E5ohC3
    wOCLV6I6b5E5ohC3
    WVim11krJIY2TY2F

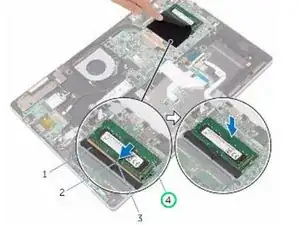

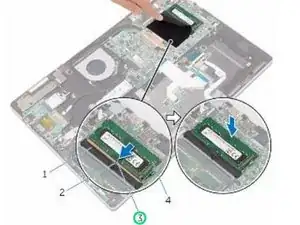

    • Align the notch on the NEW memory module with the tab on the memory-module slot.

  6. pH3xxbSuGTNb2n3F

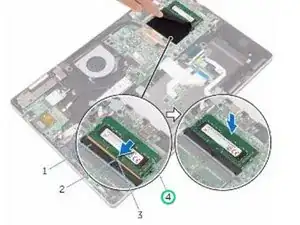

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.
