Dell Inspiron 1501 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 - 4 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. wF11WtHw4ktiqxkY

  2. K1J5mZsSqLBmYbpD

    • Loosen the two captive screws on the memory module/modem cover and remove the cover.

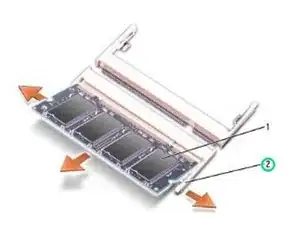

  3. 1dWPEXSX1K1unubl

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the securing clips that secure the memory module.

    • NOTICE: Handle memory modules by their edges, and do not touch the components on a module.

  4. qGA1aTgwRQajrbsy

    • Remove the module from the connector at a 45-degree angle.

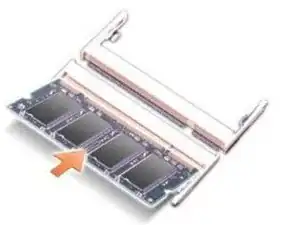

  5. eDHFwf4BGboc55MB

    • Align the notch in the module edge connector with the tab in the connector slot.

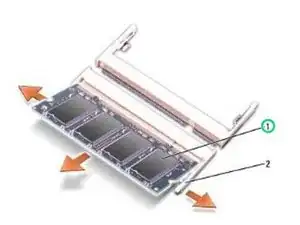

  6. xAMt6nAYBu2AWEZA

    • Slide the NEW module firmly into the slot at a 45-degree angle, and lower the module until it clicks into place. If you do not feel the click, remove the module and reinstall it.

  7. kEMX4BGe6oU4yJS3
    kEMX4BGe6oU4yJS3

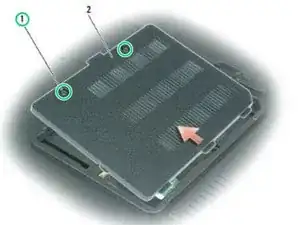

    pyIFUK4bvUqT16RC

    • Replace the memory module/modem cover and tighten the captive screws.

    • NOTICE: If the memory module/modem cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.
