Dell Inspiron 1520 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1520 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

7 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. 4fnGkvcM5Nog6SqE

    • Follow the procedures in Before You Begin.

    • Lift the memory module cover but do not remove it.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

  2. FoTlYVTC4fSeYMBv

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

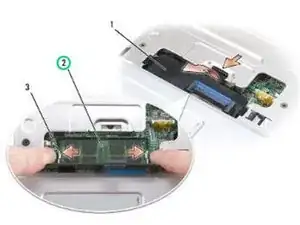

  3. NxtYSgYBdWenPitn

    • Remove the module from the connector.

  4. BcGZTAUuyD2bqqIc

    • Turn the computer over.

    • Loosen the captive screw on the memory module cover, then remove the cover and set it aside.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

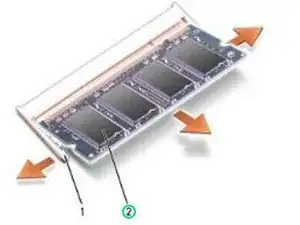

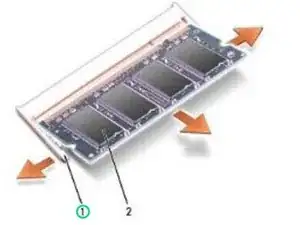

  5. OGQWXWTABfw2ToSt
    OGQWXWTABfw2ToSt
    IwlUusKasXCNMHs1

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

  6. C4PLUH3ywiFkgPwZ

    • Remove the memory module from the connector.

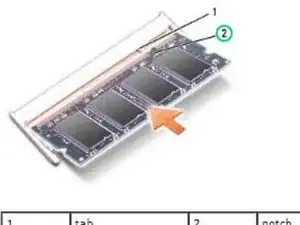

  7. iBGtNXJRLIgU2yJ5
    iBGtNXJRLIgU2yJ5
    muAF4kQdjxnQt1M6

    • Align the notch in the NEW memory module edge connector with the tab in the connector slot.

  8. KpQww3PnjhoaPdTZ

    • Slide the memory module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.

  9. ShygkpQERLYdLKUL

    • Replace the memory module cover.

  10. TFxOiFaqVgdeNHWy

    • Turn the computer over.

    • Loosen the captive screw on the memory module cover, then remove the cover and set it aside.

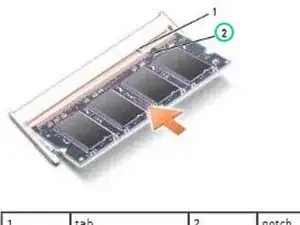

  11. 1cpBrAygjxOZWNef
    1cpBrAygjxOZWNef
    DVO3W6J4lW4pyAa1

    • Align the notch in the module edge connector with the tab in the connector slot.

  12. ggjmOaLMDW2doZWB

    • Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.

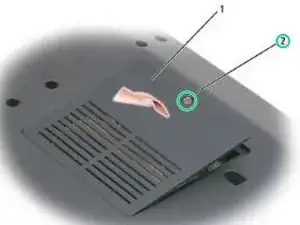

  13. SONWBHWojQFrcvxn

    • NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.

    • Replace the memory module cover and tighten the screw.
