Dell Inspiron 1521 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1521 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

7 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. kbKPBJKjT26rdEbr

    • Follow the procedures in Before You Begin.

    • Lift the memory module cover but do not remove it.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

  2. W6LTZko4VACNEBmQ

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

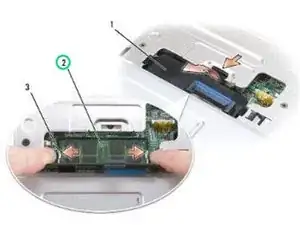

  3. SIiq6HMpME3mYgmv

    • Remove the module from the connector.

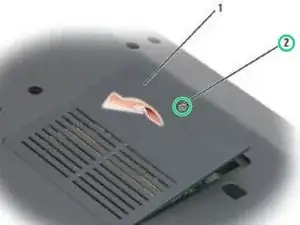

  4. AoZXEqDinkqLHjEX

    • Turn the computer over.

    • Loosen the captive screw on the memory module cover, then remove the cover and set it aside.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

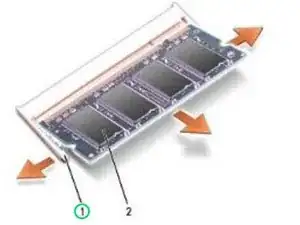

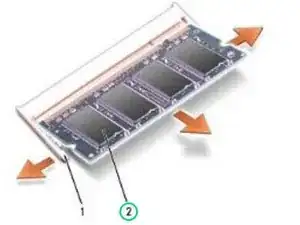

  5. XQxxEk4TgBPGE14s
    XQxxEk4TgBPGE14s
    ZkDgqxPtUHE53uyd

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

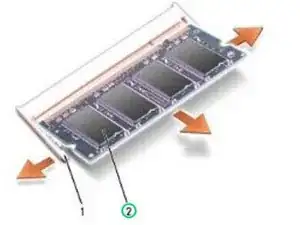

  6. aEAKDhPjuJJ5SKeY

    • Remove the memory module from the connector.

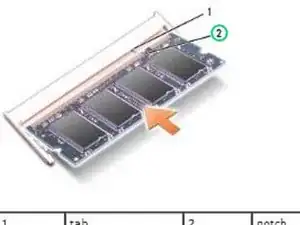

  7. hQDgsoaBnbPksqjN
    hQDgsoaBnbPksqjN
    UH1mhTaiuicIENUZ

    • Align the notch in the memory module edge connector with the tab in the connector slot.

  8. rMJhjiutXTLLWLcF

    • Slide the memory module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.

  9. ZZtVAZC6EY2UOV2U

    • Replace the memory module cover.

  10. D5gObteaFPWZSgVr

    • Turn the computer over.

    • Loosen the captive screw on the memory module cover, then remove the cover and set it aside.

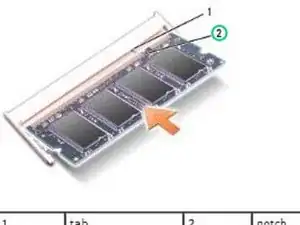

  11. tKRdrFVJQ2esJ6Bs
    tKRdrFVJQ2esJ6Bs
    ILNBjuU1YuQUWIbB

    • Align the notch in the module edge connector with the tab in the connector slot.

  12. WKriODVy454nRpfq

    • Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.

    • NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.

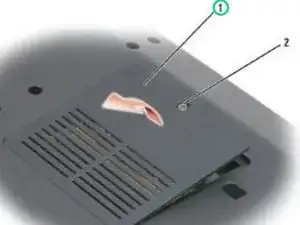

  13. dcD31Ox5qos4Sskc
    dcD31Ox5qos4Sskc
    AE1JPfZMpXyfehix

    • Replace the memory module cover and tighten the screw.
