Einleitung
Use this guide to help you replace the hard drive tray in a Dell Inspiron 1525.
Werkzeuge
-
-
Slide the battery release switch away from the lock symbol until you hear the battery click.
-
Slide the battery towards the back of the laptop until it comes free.
-
-
-
Remove the two 3.60 mm #1 Phillips screws securing the hard drive and hard drive tray.
-
Slide the hard drive and hard drive tray out of the laptop.
-
-
-

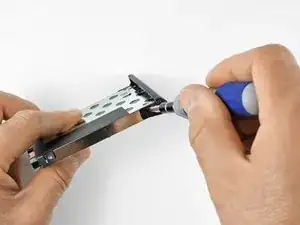

Remove the two 3.55 mm Phillips #1 screws securing the hard drive to the hard drive tray.
-

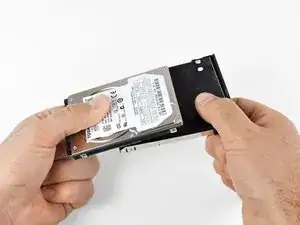

Remove the hard drive from the tray.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
