Dell Inspiron 1525 Keyboard Replacement

Geschrieben von: Miroslav Djuric
  • Kommentare: 4
Dell Inspiron 1525 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Use this guide to help you replace the keyboard in a Dell Inspiron 1525.

  1. deUAoh14XpPPXg43

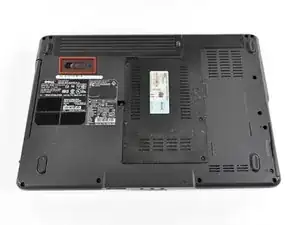

    • Locate the battery release switch on the bottom of the laptop.

  2. KFr2dDwkFIa6UElO
    KFr2dDwkFIa6UElO
    SbihRFTwyZHEZtwk

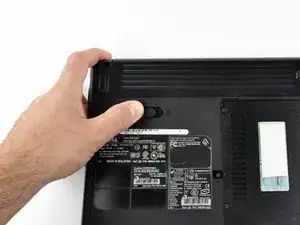

    • Slide the battery release switch away from the lock symbol until you hear the battery click.

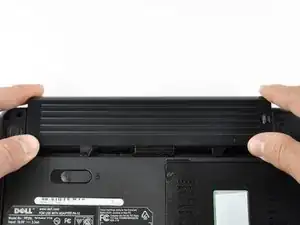

    • Slide the battery towards the back of the laptop until it comes free.

  3. NHiaMsQGU1qwNMvr

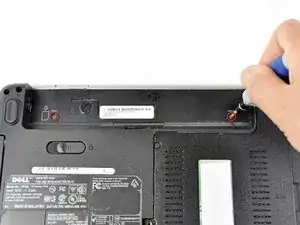

    • Remove the two 4.00 mm Phillips #1 screws from the battery tray.

  4. VomNSmYCPpicYvxA
    VomNSmYCPpicYvxA
    EIT3boN2DAvpb2uO
    BQfCSNZJ2IioOYDv

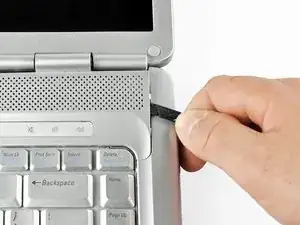

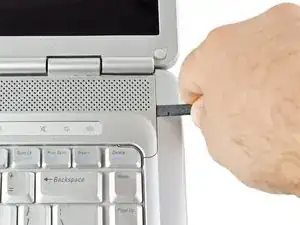

    • Insert the flat end of a spudger into the slot on the right side of the central control cover and pry it up.

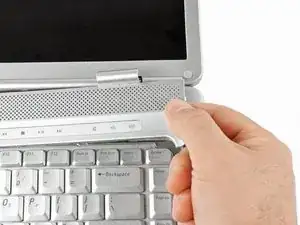

    • Carefully pull the central control cover up along its edges.

    • Do not attempt to completely remove the cover, as it is still attached via a ribbon cable.

  5. KPLbRMmxEJTaXXYH
    KPLbRMmxEJTaXXYH
    AQWXhaPXOJPMJFHY
    LYGWVkPrxUQG6bol

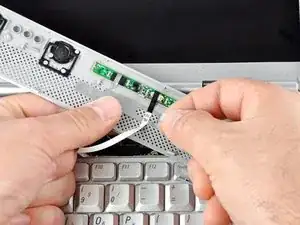

    • Peel back the silver tape securing the ribbon cable to the cover.

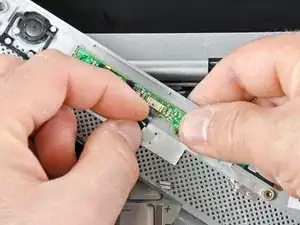

    • Pull the small brown latch on the ribbon cable connector out.

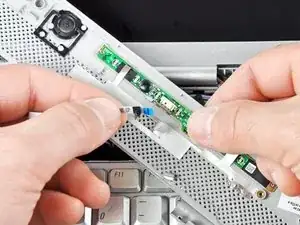

    • Disconnect the ribbon cable to completely free the central control cover.

  6. jquHoelY2gEiQRHl
    jquHoelY2gEiQRHl
    AShbWKL6HLeE3YVo

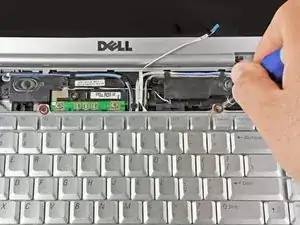

    • Remove the two 5.75 mm Phillips #1 screws securing the keyboard to the laptop.

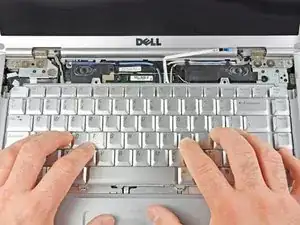

    • Gently slide the keyboard towards the display until the tabs on its front side are free.

    • Do not force the keyboard too far forward or attempt to remove it yet, as there is still a ribbon cable connected to it.

  7. NHrRPHWgcHLy2lZH
    NHrRPHWgcHLy2lZH
    HnAeN6DELeSssf1P

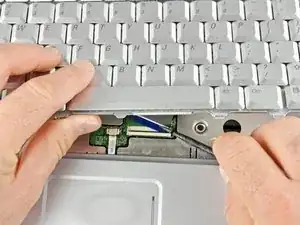

    • Use a spudger to gently lift the ribbon cable retaining flap.

    • Disconnect the ribbon cable.

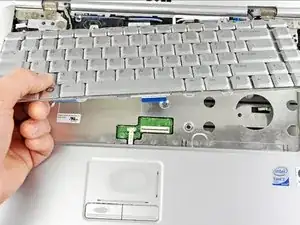

    • Shift the keyboard sideways enough to free one side from it's retaining tab. Then lift the keyboard away from the laptop.

    the flap broke? the little black piece. Now what do i do? I'm stuck at this step

    daaaammon -

Abschluss

To reassemble your device, follow these instructions in reverse order.
