Use this guide to help you replace the RAM in a Dell Inspiron 1525.

  1. deUAoh14XpPPXg43
    • Locate the battery release switch on the bottom of the laptop.

  2. KFr2dDwkFIa6UElO
    KFr2dDwkFIa6UElO
    SbihRFTwyZHEZtwk
    • Slide the battery release switch away from the lock symbol until you hear the battery click.

    • Slide the battery towards the back of the laptop until it comes free.

  3. QCLJ1IwVNORiuEWK
    QCLJ1IwVNORiuEWK
    gVF2BdsuDnSBuuEW
    • Remove/loosen the eight 4.80 mm Phillips #1 screws securing the bottom panel.

    • The screws may only need to be loosened, as they are generally retained by plastic washers.

    • Remove the bottom panel.

  4. UEPbXclRy2m1YGkU
    UEPbXclRy2m1YGkU
    vosHbCcjjOqikAvP
    AoCSCSZhoXQU3N6h

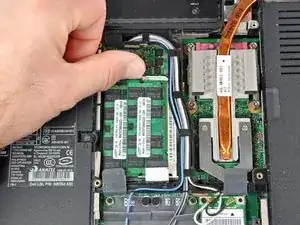

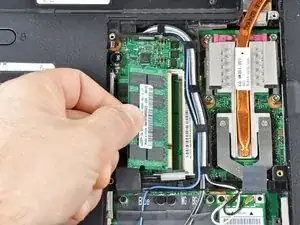

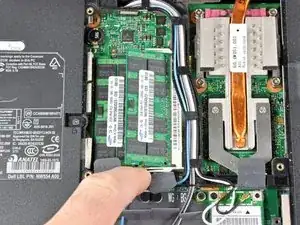

    • Push the white tabs on either side of the RAM chip outward. The chip should pop up a little.

    • Carefully remove the RAM chip by pulling it out at a slight vertical angle.

  5. gPadDHrpMVSO44Kc
    gPadDHrpMVSO44Kc
    BhrwemaYBFGh6rIN

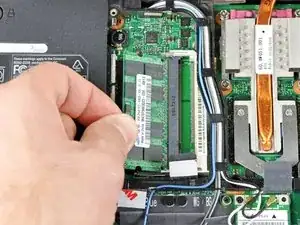

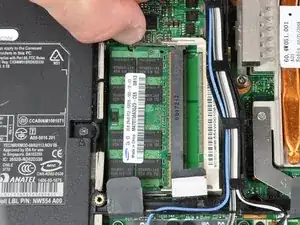

    • Remove the lower RAM chip in the same fashion as the upper one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
