Dell Inspiron 1526 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1526 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. nePZda2kkeRZqOIh
    nePZda2kkeRZqOIh
    BiH3R1kWF2nixtVK

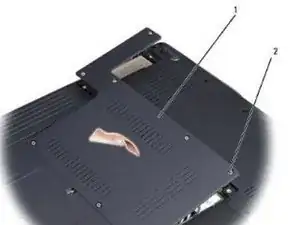

    • Follow the procedures in Before You Begin.

    • Turn the computer upside-down, loosen the eight captive screws on the cover and remove the cover.

  2. XXEMeGWjYWksaTCr
    XXEMeGWjYWksaTCr
    rfQWBUKnLKfTfVUC

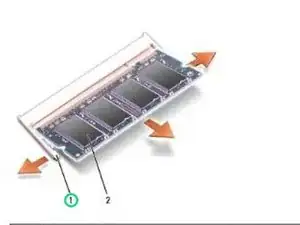

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

  3. rV12KqPZSQM5cuMH

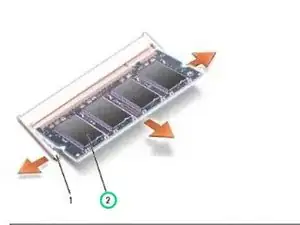

    • Remove the module from the connector.

  4. jMCbmnaXC2aqnZa6
    jMCbmnaXC2aqnZa6
    QIbyCeSjCRSJFvKP

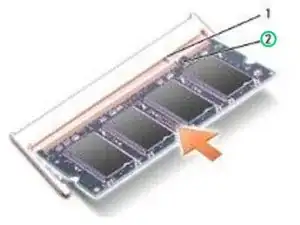

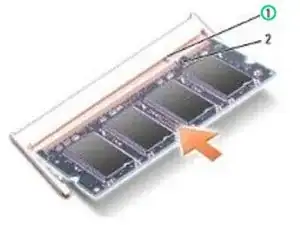

    • Align the notch in the module edge connector with the tab in the connector slot.

  5. od2VFQDeEVhVARoM

    • Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.

  6. ZILIcKcKhXoLyR6f

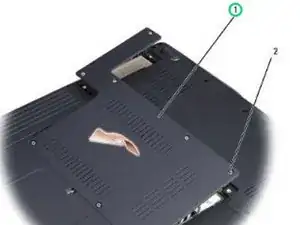

    • NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.

    • Replace the memory module cover.
