Dell Inspiron 1545 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1545 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

3 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. hu1cgoBxliIpXQJ1

    • CAUTION: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • Remove the two screws securing the hard drive assembly to the computer base.

  2. YtGEGiJTB3EdedlN

    • Slide the hard drive assembly out of the bay.

  3. qFPI2AOkIgr4m5CS

    • Remove the two screws (one from either side) securing the hard drive cage and bezel to the hard drive.

  4. 1DyaVZKeRQAVUir6

    • Remove the hard drive bezel.

  5. PYDo3p3e24ZWNQV4
    PYDo3p3e24ZWNQV4
    1rINp3CMtX3QOMCb

    • Lift the hard drive cage off the hard drive.

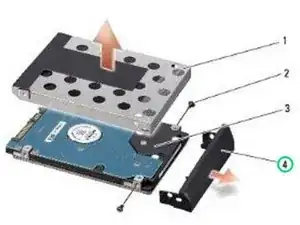

  6. wSKIqwTN1N2MXo5n
    wSKIqwTN1N2MXo5n
    jWnXKKrNCO3YZmSV

    • Replace the hard drive cage and the hard drive bezel.

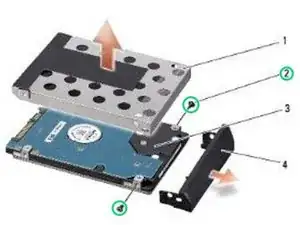

  7. IdPOILficEXC2Z22

    • Replace the two screws (one on either side) that secure the hard drive cage and bezel to the NEW hard drive.

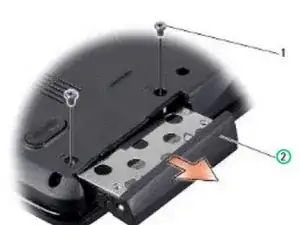

  8. LAvTJGPO6C5WGuNH

    • Slide the hard drive assembly into the bay.

  9. XmqmsP3RD6hVWu31

    • Replace the two screws that secure the hard drive assembly to the computer base.

    • NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in damage to the computer.
