Dell Inspiron 1545 LCD Replacement

Geschrieben von: Piers Lincoln
  • Kommentare: 3
Dell Inspiron 1545 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

If the screen itself is cracked or broken it may be necessary to replace the LCD screen.

  1. IlCauI3gvC4OKbWC

    • Remove the two screws (5.5mm, Phillips #1) from the laptop base.

    Uh, how did the back cover end up coming off?

    Maurice Volaski -

  2. IeFsH3Z2AclEwBwB

    • Remove black and white wires from the WLAN that lead to the display by pulling straight up.

    • Unwind the wires so they can be freely pulled through in the next step.

  3. 6oDPqu6BWurdwhhs

    • Turn the laptop over to its standard position.

    • Disconnect the Wed cable and Camera1 cable from the respective Motherboard connectors as marked. Unsecure the wires so they are loose.

    • Pull the black and white wires previously connected to the WLAN through the hole.

  4. DARb1vAZWRrJDtlS

    • Remove the Camera1 cable, the Wed cable, and the black and white wires from the routing guides.

    • Remove the four screws (5mm Phillips #1) (two on either side) that secure the display assembly.

  5. w66CggnqAWWqkCco

    • Lift the display assembly off the computer.

  6. GP6m2EYLpNeWy1aI

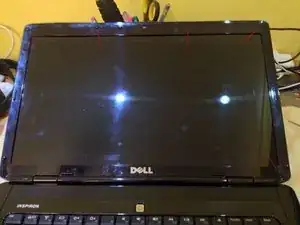

    • Lift up the six Rubber feet. There is one in each corner at the bottom of the screen, and four along the top of the screen.

    • Remove the screws underneath. Note: one screw at the top and right of center may be magentized and not come out.

  7. MyrKxx4hXQSTTVs5
    MyrKxx4hXQSTTVs5
    eVIBwuhMYkeTOXbk

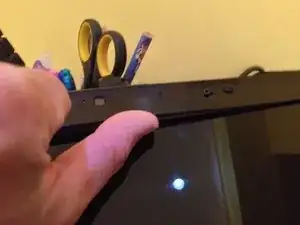

    • Using your thumb, starting at the top, push your thumb from the inside of the bezzel outwards and the plastic pops off. Work your thumb round repeating the process on both top and sides until you get to the bottom.

    • The bottom has double sided tape along the metal strip where the plastic meets the bezel. Separate this and then push outwards again.

    • The whole bezel should now be free and you can remove it from the laptop.

  8. TvE1h5NwXAJ2TBbP
    TvE1h5NwXAJ2TBbP
    eFNJjUtbfEYHRTqj

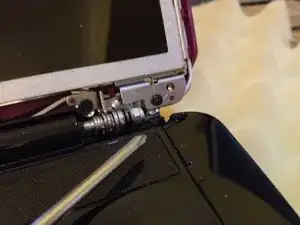

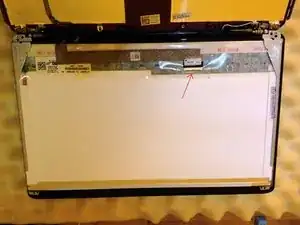

    • At the bottom, find the two hinges. There is a small triangle mark on both hinges. You need to remove the screws next to the triangle on the hinges (only one each side) and the screen is completely free of the chassis.

    • If you have a CCFL LCD panel, you may have to unscrew the inverter board.

    • Carefully rotate the panel out the lid cover.

    • If a CCFL LCD, the ribbon cable will be securely taped to the connector at the top as well as at the bottom edge of the panel.

    • Disconnect the ribbon cable from the screen at the bottom (larger connector) to completely remove the screen. Lift up lock bar (blue tab attached) then gently pull ribbon connector out.

    • Remove the 2 brackets attached to the screen by removing 3 screws on the side of each bracket.

    • In my example, the product numbers of the screen are as follows :- BT156gw01 v.4 . If you put this number into eBay you will have several alternatives returned.

    • Fitting is reversal of steps so far.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Piers Lincoln

Mitglied seit: 08/09/13

225 Reputation

2 Kommentare

For this model, you can take off the bezel without removing the entire LCD assembly.

rsaj111 -

No need to remove everything, here is an easier guide:

1. Remove the battery.

2. Take off the 6 rubber feet on the bezel

3. Remove the 6 bezel screws.

4. Remove the two LCD screws located next to the two arrows.

5. Slide the ribbon cable from the back of the LCD.

6. Reverse the procedure.
