Dell Inspiron 1545 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1545 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

15 - 55 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. XsHnhfypvFVYwLDE

    • CAUTION: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

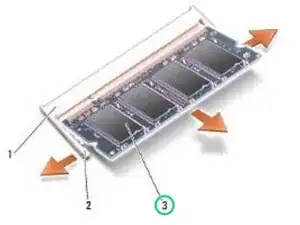

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

  2. KBsOgsoOT5L5hkK6

    • Remove the memory module from the connector.

  3. JiElHANpWTIajvUZ
    JiElHANpWTIajvUZ
    KfeON1TfEhCPTdE3

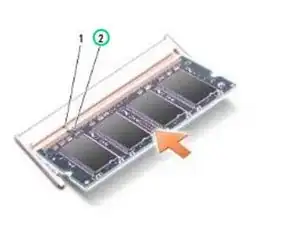

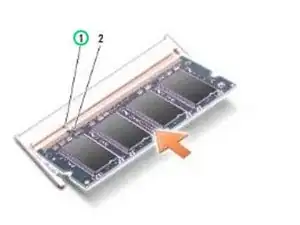

    • Align the notch in the edge of the NEW memory module with the tab in the memory module connector.

  4. CFA6kgLG33PinTJB

    • Slide the module firmly into the slot at a 45-degree angle, and press the module down until it clicks into place. If you do not hear the click, remove the module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
