Einleitung

This guide will most likely be utilized if one of the RAM modules becomes corrupted or you wish to upgrade to a higher amount of RAM if applicable.

  1. QfivfuqeUEdjbyWl
    • Before attempting to remove the battery ensure that the laptop is disconnected from all power sources and turned off.

    • Turn the laptop over to its back.

  2. niO5YeKHZrxNBLGa
    • Slide the release latch while simultaneously pulling backwards on the battery.

  3. LgacPsHYg3IgQTHw
    • Slide the battery out of the battery bay.

  4. 1nPYEcv4WlMqZIbF
    • Unscrew the four screws (3mm Phillips #1) that hold the base cover in place.

    • The screws are connected to the base cover by a washer anddo not remove from the base cover.

  5. HNkWSlGYDEoRJNjP
    HNkWSlGYDEoRJNjP
    WEUgugBCCFtpqmhI
    • Carefully lift the base cover vertically away from the laptop.

  6. EgbkiZsMJ3enRYWB

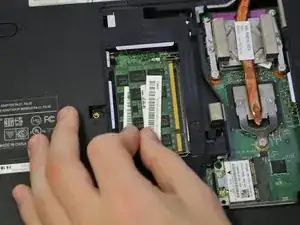

    • Spread apart the securing clips on each end of the memory stick until the memory stick pops up.

    • Remove the memory stick from the laptop.

    • Repeat these steps to remove the second memory stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
