Dell Inspiron 1545 Speakers Replacement

Geschrieben von: Nathan Lemay
  • Kommentare: 3
Dell Inspiron 1545 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

20 Minuten

Einleitung

This guide will allow you to remove the speakers if there is a physical malfunction with your speakers. This guide should only be used if you are certain there is a physical issue with the speakers.

  1. QfivfuqeUEdjbyWl

    • Before attempting to remove the battery ensure that the laptop is disconnected from all power sources and turned off.

    • Turn the laptop over to its back.

  2. niO5YeKHZrxNBLGa

    • Slide the release latch while simultaneously pulling backwards on the battery.

  3. LgacPsHYg3IgQTHw

    • Slide the battery out of the battery bay.

  4. FFtNREbagGXQFc3e

    • After removing the battery, remove the two screws (3mm Phillips #1) beneath it. These screws hold the Center Control Cover in place.

  5. BkItCfMPUj42aNLq

    • Flip the laptop over to the front and open the display as far as possible.

  6. IL5YhXvXFQsfS2A3
    IL5YhXvXFQsfS2A3
    SM22SBgncFEVe5mS
    asEuxIVi3mrhvQly

    • The Center Control Cover is VERY fragile, be careful when using prying tools.

    • Pry the Center Control Cover from the laptop. On the right there is a small divot, it is advised that you start removing the panel from here.

    • Carefully lift the Center Control Cover away from the laptop.

  7. 1nPYEcv4WlMqZIbF

    • Unscrew the four screws (3mm Phillips #1) that hold the base cover in place.

    • The screws are connected to the base cover by a washer anddo not remove from the base cover.

  8. HNkWSlGYDEoRJNjP
    HNkWSlGYDEoRJNjP
    WEUgugBCCFtpqmhI

    • Carefully lift the base cover vertically away from the laptop.

  9. HbGNO5QqP2bVAMRP

    • Remove the two screws (5mm Phillips #1) at the top of the keyboard.

  10. boBTt4ku3BCYMb2Y

    • Slide the keyboard out and away from the laptop and lift it up to access the keyboard connector.

    • Do not pull hard on the keyboard while removing it, you may damage the keyboard or the keyboard connector.

  11. i22dGRYxJTN2YDQA

    • Lift the connector latch that secures the keyboard cable to the connector on the motherboard and remove the cable.

    The connector latch is the black piece.

    Maurice Volaski -

    Good tip! As shown. flips up and toward user

    Tom Borden -

  12. UDLnTgkykOoaoNAJ

    • Lift the keyboard up and away from the laptop.

  13. ERYMetTvSemUMVd2

    • Remove the 11 screws (5mm Phillips #1) from the back of the laptop as marked. One screw is in the middle, by the RAM.

    If you’re using the ifixit pro tech toolkit and are having trouble getting the top screws, try using the flex connector. Took me a a few tries, but it worked for me.

    Dennis Walker -

  14. ScBO64I5cMOVYlXu

    • Remove black and white wires from the WLAN that lead to the display by pulling straight up.

    • Unwind the wires from the routing guides.

  15. pEfZB4JCWr5KpCL4

    • Turn the laptop back over to its normal resting position and pull the black and white wires previously connected to the WLAN through the hole.

    • Remove the 4 smaller screws (5mm Phillips #1) and one screw on the top left (3mm Phillips #1) from the palm rest.

  16. CnfWSFMPQPhhwT1x

    • Disconnect the Bluetooth card cable, Wed cable, Camera1 cable, power cable, and touchpad cable from the respective Motherboard connectors as marked. For the Bluetooth cable and Camera1 cable, pull the plugs towards the screen. For the touchpad and power cable, lift the black tab and then pull them out. For the Wed cable, pull the blue tab up.

    • Unsecure the wires from the routing guides so they are loose.

    • Pull on the plastic tabs for each connector to help prevent causing damage to the connectors.

  17. XN3qQBmNVPxtDELj

    • To separate the palm rest from the rest of the computer, use a plastic opening tool to lift up the plastic. It is best to start at one point and work your way around.

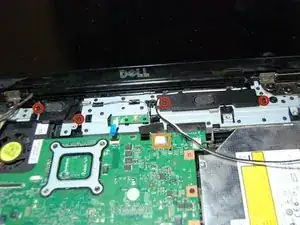

  18. bmwhK1ifS2lbrDgl

    • Remove four speaker screws (3mm Phillips #1). Each speaker has two.

    • Disconnect the speaker cable from the connector on the Motherboard by pulling the white plastic tab towards the screen.

    • Pull off the black tape securing the speaker cable.

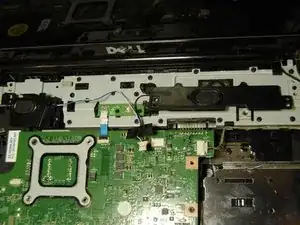

  19. JCiUvE2RNL3Kbtvv

    • Remove the speaker cable from the routing guides and remove the speakers.

    • The right speaker has adhesive on the back so it will take a little prying to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
