Dell Inspiron 1545 Thermal Fan Replacement

Geschrieben von: Nathan Lemay
  • Kommentare: 7
Dell Inspiron 1545 Thermal Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

26

Zeitaufwand

30 Minuten

Einleitung

This guide will most likely be utilized for the removal and cleaning of the Thermal Fan. This is often in response to overheating issues or to replace a fan that is functioning improperly.

  1. QfivfuqeUEdjbyWl

    • Before attempting to remove the battery ensure that the laptop is disconnected from all power sources and turned off.

    • Turn the laptop over to its back.

  2. niO5YeKHZrxNBLGa

    • Slide the release latch while simultaneously pulling backwards on the battery.

  3. LgacPsHYg3IgQTHw

    • Slide the battery out of the battery bay.

  4. ABn5e5igOQvUEFcR

    • Flip the laptop to its back side.

    • Remove the screw (5mm Phillips #1) that secures the Optical Disk Drive on the back of the laptop.

    You really don’t need to have the “Flip the laptop to its back side” comment here, as you should have already done that to get the battery out due to having to slide the battery latch, which is on the bottom.

    Matt Pierce -

  5. AhcOn5jdlfCOVFeH
    AhcOn5jdlfCOVFeH
    jmVcy5SlPSrlLIGF
    Unck6i3Kssr2Km6H

    • Push the Optical Disk Drive out using a spudger tool as shown and pull from the front cover of the Optical Disk Drive.

  6. 1nPYEcv4WlMqZIbF

    • Unscrew the four screws (3mm Phillips #1) that hold the base cover in place.

    • The screws are connected to the base cover by a washer anddo not remove from the base cover.

  7. HNkWSlGYDEoRJNjP
    HNkWSlGYDEoRJNjP
    WEUgugBCCFtpqmhI

    • Carefully lift the base cover vertically away from the laptop.

  8. oBGi2P2sUIPIH3GQ

    • Loosen the 5 screws (4mm, Phillips #1) that secure the CPU Heat Sink to the motherboard.

    • These screws are held in place by a washer so you should not be able to completely remove the screws.

    My fifth screw, (the one towards the bottom), won't unscrew. Anybody that can help?

    Michael Shirley -

  9. SwJE2tkoTOFITDME

    • Pull up on the Heat Sink unit to remove it.

  10. FFtNREbagGXQFc3e

    • After removing the battery, remove the two screws (3mm Phillips #1) beneath it. These screws hold the Center Control Cover in place.

  11. BkItCfMPUj42aNLq

    • Flip the laptop over to the front and open the display as far as possible.

  12. IL5YhXvXFQsfS2A3
    IL5YhXvXFQsfS2A3
    SM22SBgncFEVe5mS
    asEuxIVi3mrhvQly

    • The Center Control Cover is VERY fragile, be careful when using prying tools.

    • Pry the Center Control Cover from the laptop. On the right there is a small divot, it is advised that you start removing the panel from here.

    • Carefully lift the Center Control Cover away from the laptop.

  13. HbGNO5QqP2bVAMRP

    • Remove the two screws (5mm Phillips #1) at the top of the keyboard.

  14. boBTt4ku3BCYMb2Y

    • Slide the keyboard out and away from the laptop and lift it up to access the keyboard connector.

    • Do not pull hard on the keyboard while removing it, you may damage the keyboard or the keyboard connector.

  15. i22dGRYxJTN2YDQA

    • Lift the connector latch that secures the keyboard cable to the connector on the motherboard and remove the cable.

    The connector latch is the black piece.

    Maurice Volaski -

    Good tip! As shown. flips up and toward user

    Tom Borden -

  16. UDLnTgkykOoaoNAJ

    • Lift the keyboard up and away from the laptop.

  17. ERYMetTvSemUMVd2

    • Remove the 11 screws (5mm Phillips #1) from the back of the laptop as marked. One screw is in the middle, by the RAM.

    If you’re using the ifixit pro tech toolkit and are having trouble getting the top screws, try using the flex connector. Took me a a few tries, but it worked for me.

    Dennis Walker -

  18. ScBO64I5cMOVYlXu

    • Remove black and white wires from the WLAN that lead to the display by pulling straight up.

    • Unwind the wires from the routing guides.

  19. pEfZB4JCWr5KpCL4

    • Turn the laptop back over to its normal resting position and pull the black and white wires previously connected to the WLAN through the hole.

    • Remove the 4 smaller screws (5mm Phillips #1) and one screw on the top left (3mm Phillips #1) from the palm rest.

  20. CnfWSFMPQPhhwT1x

    • Disconnect the Bluetooth card cable, Wed cable, Camera1 cable, power cable, and touchpad cable from the respective Motherboard connectors as marked. For the Bluetooth cable and Camera1 cable, pull the plugs towards the screen. For the touchpad and power cable, lift the black tab and then pull them out. For the Wed cable, pull the blue tab up.

    • Unsecure the wires from the routing guides so they are loose.

    • Pull on the plastic tabs for each connector to help prevent causing damage to the connectors.

  21. XN3qQBmNVPxtDELj

    • To separate the palm rest from the rest of the computer, use a plastic opening tool to lift up the plastic. It is best to start at one point and work your way around.

  22. LWElwc54osNyRVQQ

    • Remove the 3 screws (3mm Phillips #1) that secure the daughter board to the motherboard.

    • Lift the daughter board away from the laptop.

    So I’m dumb. Remember to take out the slot that pulls from the side!

    Dennis Walker -

  23. mYBaLNGCkkdHRAji

    • Remove the two screws (3mm, Phillips #1) on the left and the two screws (5mm, Phillips #1) on the right that secure the Motherboard to the laptop.

  24. 42dEaKXrayUrI5jJ

    • Disconnect the Thermal Fan cable, Speaker cable, and USB Board cable from their connectors.

  25. smNLhPSmMWLxCNUr

    • To remove the Motherboard, pull away and up from the base of the laptop.

    • Along with removing the Motherboard if you haven’t already done so, the auxiliary port cover on the front will come off with it as well.

    Great job. Couldn’t have done it nearly as fast without making mistakes. Thank you.

    Andy Rothauser -

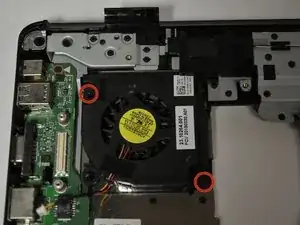

  26. dIh11KXpUH6BxFnd

    • Remove the two screws (5mm, Phillips #1) that secure the thermal fan to the laptop.

    • Lift the thermal fan up and away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
