Dell Inspiron 1546 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1546 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. dMgCVsAj2aNZOIUS

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

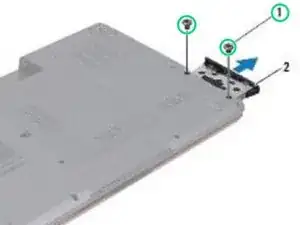

    • Remove the two screws that secure the hard drive assembly to the computer base.

  2. WpTSEDdPEFBv46kD

    • Slide the hard drive assembly out of the hard drive compartment.

  3. FtSqmmxqUfYpXZsU

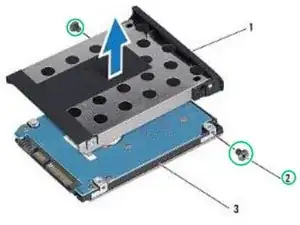

    • Remove the two screws that secure the hard drive bezel to the hard drive.

  4. o4bFFmJFgfulAWN1
    o4bFFmJFgfulAWN1
    Slgo4GM3eFRfTWIC

    • Lift the hard drive bezel off the hard drive.

  5. iKX5iTdG3RNRgOoy

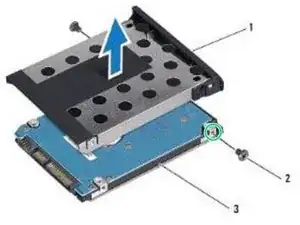

    • Align the screw holes on the hard drive bezel with the holes on the NEW hard drive.

  6. Q5gFKSdw4XxujSat

    • Replace the two screws that secure the hard drive bezel to the hard drive.

  7. 1txHiZjmLJ2cfIho

    • Slide the hard drive assembly into the hard drive compartment until it is fully seated.

  8. tcgNNsKD1HbuZTts

    • Replace the two screws that secure the hard drive assembly to the computer base.
