Einleitung
This guide will teach you how to remove components all the way down to the CPU fan.
Werkzeuge
-
-

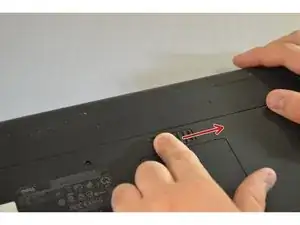

Locate battery latch on the bottom of the computer and slide to the right.
-

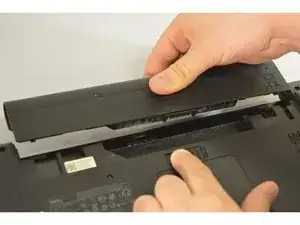

While holding battery latch, pull battery away from device.
-
-
-
With the J0 screwdriver bit, loosen all the screws from the backing opposite of battery.
-

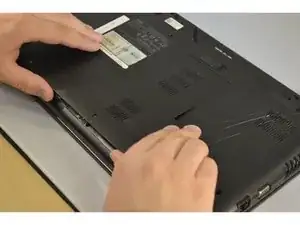

Remove the covering.
-
-
-

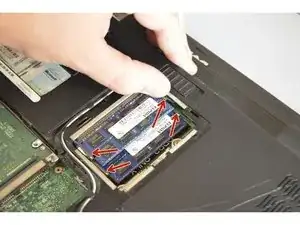

Gently pull back the small clips along the side of each stick of RAM.
-

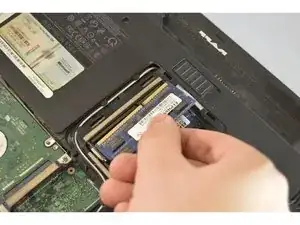

Gently lift the RAM upwards so the RAM is now angled.
-
Pull the RAM away from the device.
-
Repeat steps for second stick of RAM
-
-
-

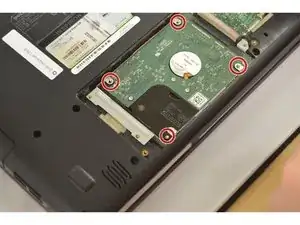

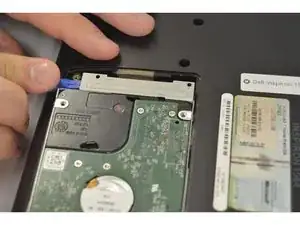

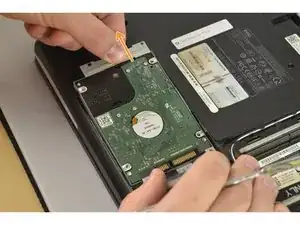

Unscrew the four screws holding in the hard drive.
-
Slide the hard drive towards and to the left to unplug it.
-
Pry the hard drive upwards and pull away from device.
-
-
-

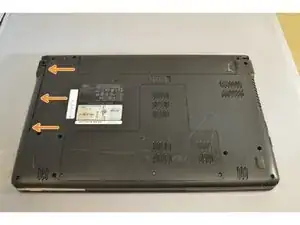

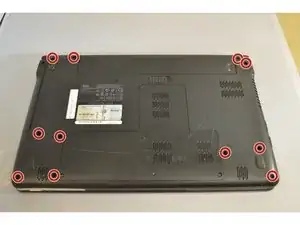

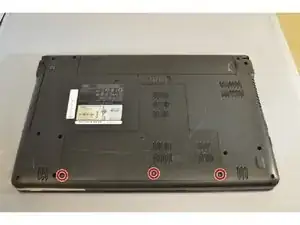

With the J0 screwdriver remove the 11 screws on the bottom of the computer.
-
Locate the CD drive at the left side when computer is flipped over.
-

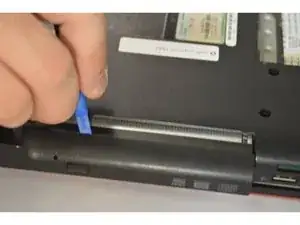

Pry CD drive away from device gently.
-
-
-

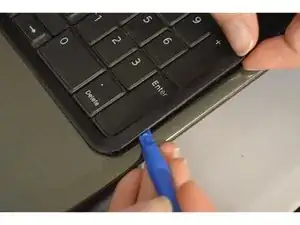

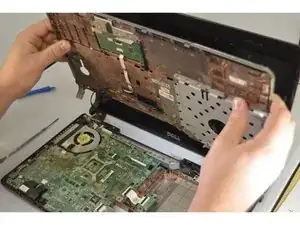

Using the blue plastic opening tool, start prying in the space between the screen and the keyboard.
-
Remove black cover from the keyboard.
-
-
-

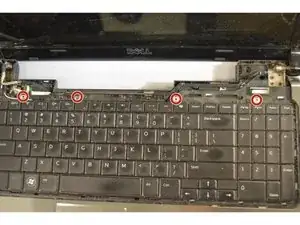

Remove the four screws on the top of the keyboard.
-
Press down on the tabs on each side of the keyboard to free it.
-

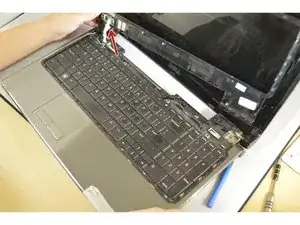

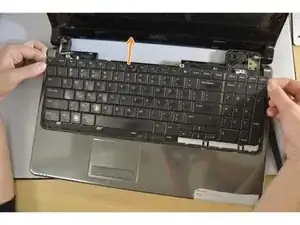

Remove the keyboard by pulling the board towards the screen and up.
-
Flip the latch on the computer connecting the ribbon cable to the keyboard.
-
-
-

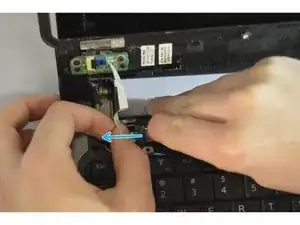

Slide the keyboard ribbon cable out.
-

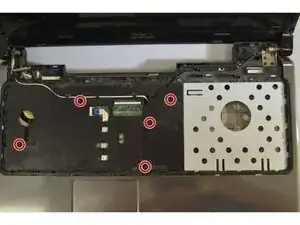

Remove the five screws that were underneath the keyboard.
-
-
-

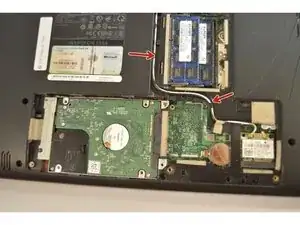

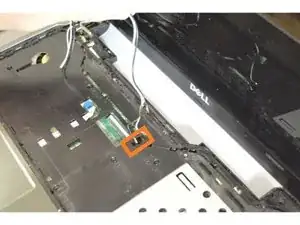

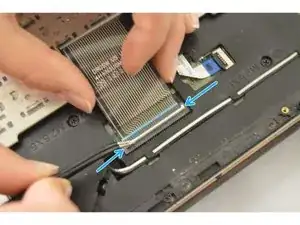

Lift black and white wire connections away from the device.
-

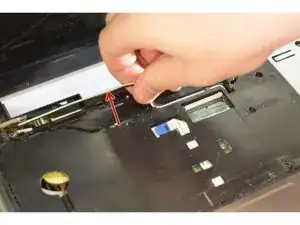

Slide wires through the hole to the top of the keyboard.
-
-
-

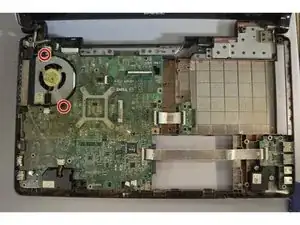

Using the J0 screwdriver bit, remove two 7mm screws holding fan in place.
-

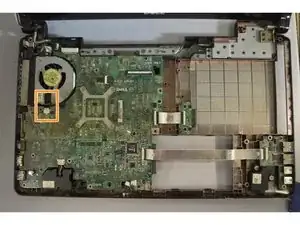

With tweezers, gently pull cable connecting fan to board.
-

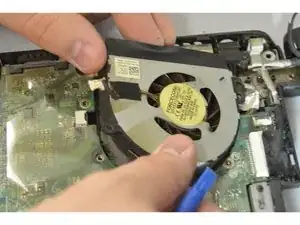

Gently tilt fan upwards and remove.
-
To reassemble your device, follow these instructions in reverse order.
