Dell Inspiron 1564 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1564 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. gq2ONLV6lVHDpEr2

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface.

    • Note of the routing of the Mini-Card antenna cables and remove them from the routing guides on the bottom of the computer.

  2. eVUF66qSGeWfQymQ

    • Remove the two screws on the bottom of the computer that secure the display assembly to the computer base.

  3. 3jZp6n1Zkb5OOTdw

    • Pull the Mini-Card antenna cables up through the slot in the computer base.

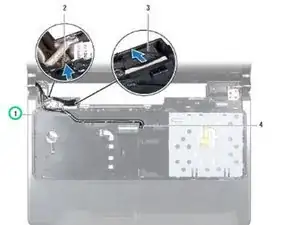

  4. hxqeJXf3AESrwGHa

    • Note the routing of the Mini-Card antenna cables and remove them from the routing guides on the palm rest.

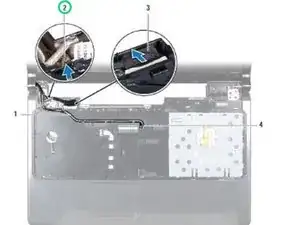

  5. NM1MWERKXroHRKmS

    • Disconnect the display cable from the connector on the system board, and remove the display cable grounding screw.

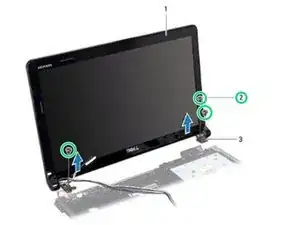

  6. eR1DCJGeBYtqDalF

    • Hold the display assembly in place and remove the three screws that secure the display assembly to the computer base.

  7. rMGAWWPKDWaiaayH

    • Lift the display assembly off the alignment posts on the computer base.

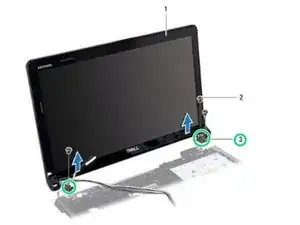

  8. ry5x1iCbMtYQVqeV

    • Use the alignment posts to place the display assembly on the computer base.

  9. fD1mOnTDkNklUIdN

    • Replace the three screws that secure the display assembly to the computer base

  10. 2bNtpiulNwQnE1U3

    • Connect the display cable to the connector on the system board, and replace the display cable grounding screw.

  11. KhjxjneuxGQxyu34

    • Route the Mini-Card antenna cables through the routing guides on the palm rest.

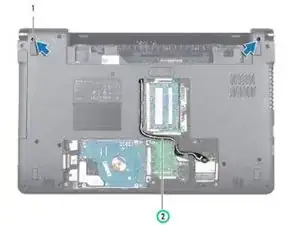

  12. 5uXQDuPZIlcbvmEH

    • Thread the Mini-Card antenna cables through the slot in the computer base.

  13. MEjYnsqi1DwJtPWU

    • Turn the computer over and replace the two screws that secure the display assembly to the computer base.
