Dell Inspiron 1564 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 - 35 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. nVKPDeogxN6XlEcp
    nVKPDeogxN6XlEcp
    WaJuLt4WYMYSHGHP

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

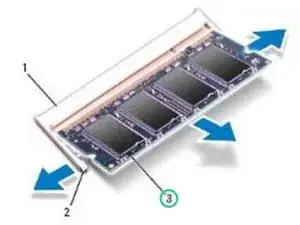

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

  2. KnoC2KRSTejQZGRc

    • Remove the memory module from the memory module connector.

  3. rInNrwGi3TCR2Mhk

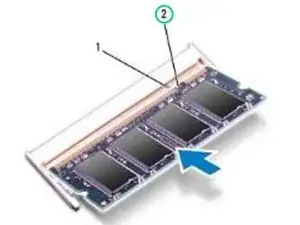

    • Align the notch in the memory module with the tab in the memory module connector.

  4. HGFPilXvUOFeRT4h

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
