Dell Inspiron 15R 5520 Display Replacement

Geschrieben von: zAj
  • Kommentare: 0
Dell Inspiron 15R 5520 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

This replacement guide will demonstrate how to safely remove and replace the Inspiron 15R 5520 display screen.

  1. K2RWPVQK6sWyHp1P

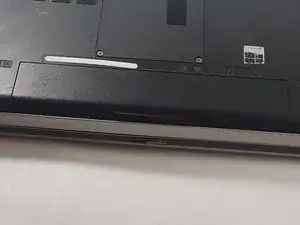

    • We are removing the battery to avoid the possibility of an electrical discharge when working with this system.

    • Flip device on its back displaying the battery.

  2. joLOS4ExOfLtgrYj
    joLOS4ExOfLtgrYj
    WJANG6mDaPCfgMPG
    hjokApjbsiAWlqvu

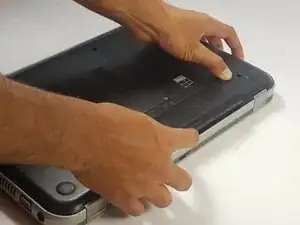

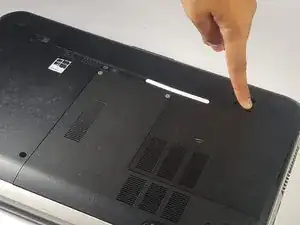

    • Place a finger on both latches and push outwards.

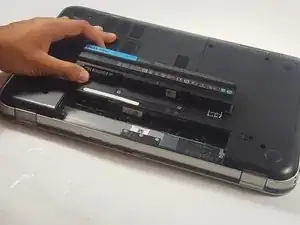

    • Grab by the lip and pull upwards to remove battery.

  3. Yl3tUw5L2QMtRidC
    Yl3tUw5L2QMtRidC
    CsZdDhpVskQ4HbbS
    RUrEQNX31abMa4RB

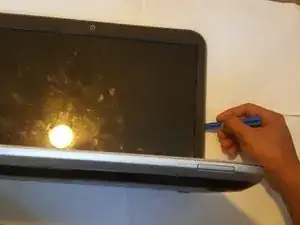

    • Lay the device as shown on table.

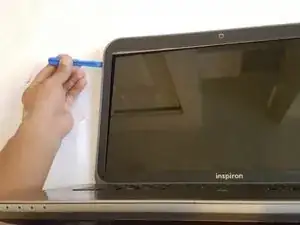

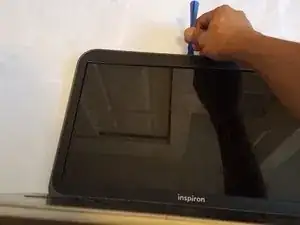

    • Use the plastic opening tool to separate the plastic casing on all sides.

  4. mVwL2weCTecPlQtt
    mVwL2weCTecPlQtt
    nRCGOekuf2WLOMvS

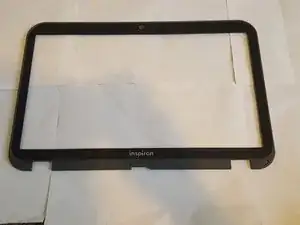

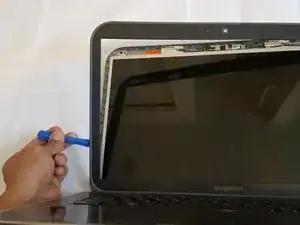

    • Remove casing for screen.

  5. KqHCAPbr6b2pcRxJ
    KqHCAPbr6b2pcRxJ
    fdNFSNuIISsfoZ2d
    pkIMVIQSsIlWYXkI

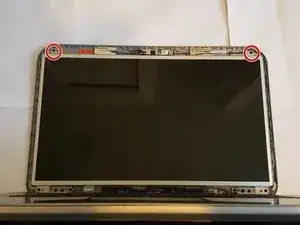

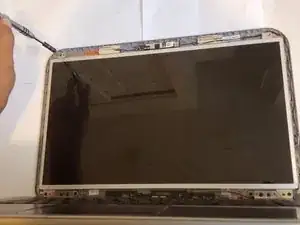

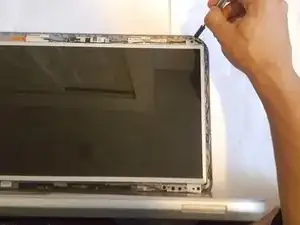

    • Locate and remove the top two 4mm screws.

  6. FKXHerQZwoKWCfVj
    FKXHerQZwoKWCfVj
    HCxBGJbMlg5Dqw3R
    sSM2wXMcaHHKuVRK

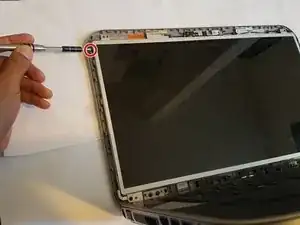

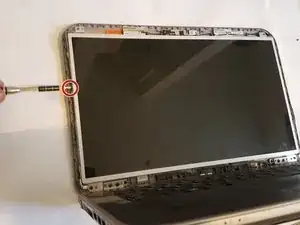

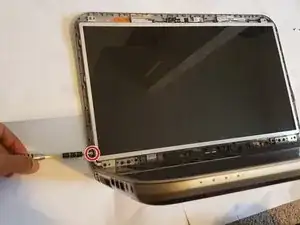

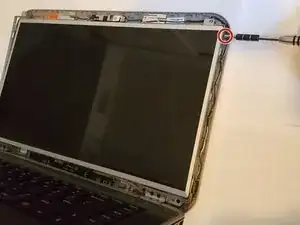

    • Locate and remove the three 3mm left hand side screws.

  7. 5dV5nwiAyRCYS3Gs
    5dV5nwiAyRCYS3Gs
    W6kpjGJ4LKGUZ1BN
    lM2ecMAAaPWPpVaR

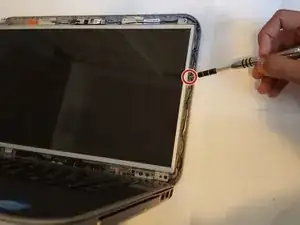

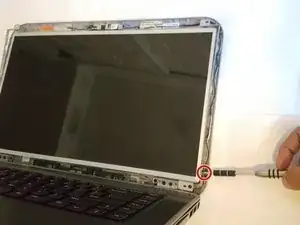

    • Locate and remove the three 3mm right hand side screws.

  8. Fg3XbegwQWJXQwmv
    Fg3XbegwQWJXQwmv
    HyBI3ftUXG5xFilZ
    VoVexlCwPHBtSf3M

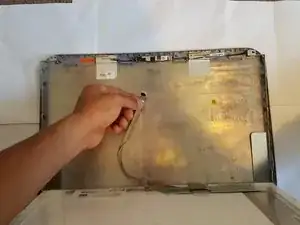

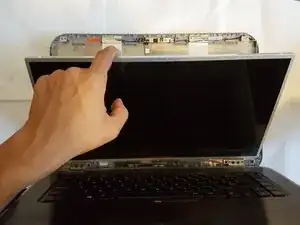

    • Lift the display up to reveal the cable behind it.

    • Pull the cable straight down.

  9. iFabGJTKFAkjnpSC
    iFabGJTKFAkjnpSC
    bebMdVA6mOblT1sy
    tPQu1HvOpb1Rwplb

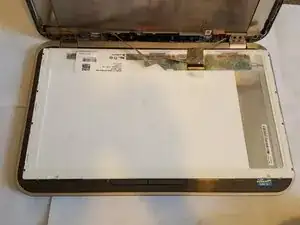

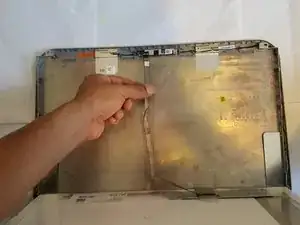

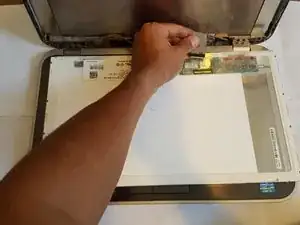

    • Sit the device upright and lay the display down on the keyboard.

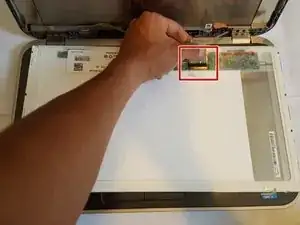

    • Locate the cable on the base of the display.

    • Pull gently away from yourself.

  10. Ica1piMT2LlOvjRw

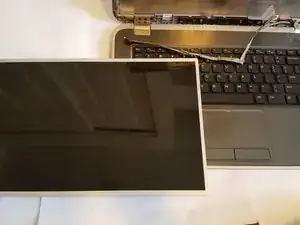

    • Remove screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
