Dell Inspiron 15R 5520 Keyboard Replacement

Geschrieben von: Joseph Simplicio
  • Kommentare: 0
Dell Inspiron 15R 5520 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

If some or all keys are not working, this replacement guide will help demonstrate how to replace keyboard.

Werkzeuge

  1. K2RWPVQK6sWyHp1P

    • We are removing the battery to avoid the possibility of an electrical discharge when working with this system.

    • Flip device on its back displaying the battery.

  2. joLOS4ExOfLtgrYj
    joLOS4ExOfLtgrYj
    WJANG6mDaPCfgMPG
    hjokApjbsiAWlqvu

    • Place a finger on both latches and push outwards.

    • Grab by the lip and pull upwards to remove battery.

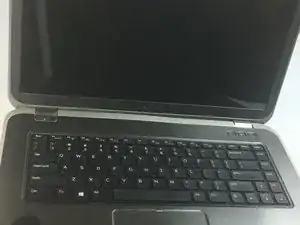

  3. oldsiNa13XBNQjXI

    • Flip device and open.

  4. 2iFilHV5RVgsO21t
    2iFilHV5RVgsO21t
    mFmJBMyvc5HeHbE2
    sZbQ5ZWIhv5LBxrZ

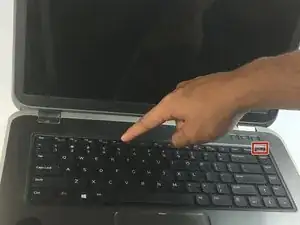

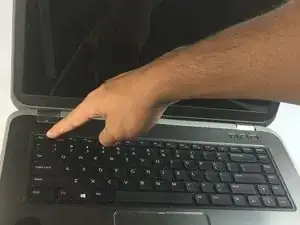

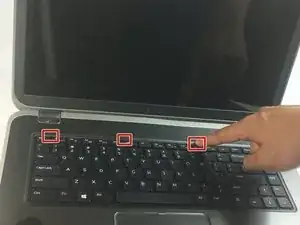

    • Locate the keyboard lining (between the black and silver).

    • Place your spudger between the keyboard lining behind the x icon and home keys and pull up.

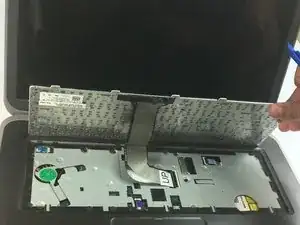

  5. w2EysSPRiv1aEBNa
    w2EysSPRiv1aEBNa
    c5wNiy4DM5bqg1Lw

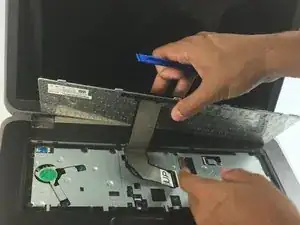

    • Lift up on latch.

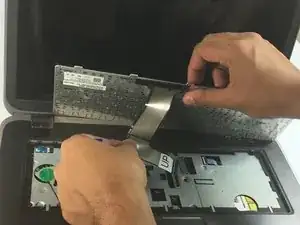

  6. gSSRtmVMQr1n3yBo

    • Remove the keyboard cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
