Dell Inspiron 15R 5520 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 2
Dell Inspiron 15R 5520 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

15 - 45 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. TLNG1KtbeCSDdpsU
    TLNG1KtbeCSDdpsU
    PR2YDiGyPCUvpk5S

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory-module securing clips.

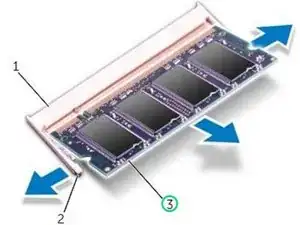

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  2. 6ixf1CCbIjGtf1KO

    • Remove the memory module from the memory-module connector.

  3. ivGCATmeUtFb1twU
    ivGCATmeUtFb1twU
    4BHPvKdVZKHv4qwE

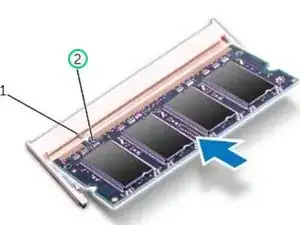

    • Align the notch on the memory module with the tab on the memory-module connector.

  4. LMaQGmfeTNmCJeUI

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
