Dell Inspiron 15R 5521 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15R 5521 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. 5iRVeIOMWRkCKJMJ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Peel the tape that secures the display cable to the system board.

  2. Vweyid5qhCEp1GMH

    • Disconnect the display cable from the connectors on the system board.

  3. sheL6upuxlGD1mVX

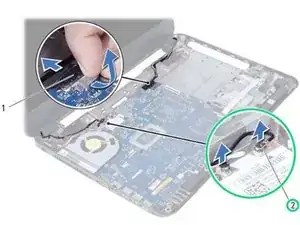

    • Disconnect the wireless mini-card cables from the connectors on the wireless mini-card.

  4. kXddE2W2KUv2qSUq

    • Move aside the power adapter-port cable from the screws.

  5. cgj14OQXW1WqwgWV

    • Remove the screws that secure the display assembly to the computer base.

  6. TSn5oAgRaBqqwTgy

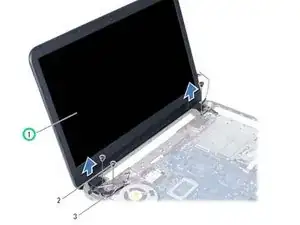

    • Lift the display assembly off the computer base.

  7. ndexBgMvV4tKvJTk

    • Place the NEW display assembly on the computer base and align the screw holes on the display assembly with the screw holes on the computer base.

  8. R3Z36FPoHsaXmSJN

    • Replace the screws that secure the display assembly to the computer base.

  9. J6nyfAdhWYbsLJaH

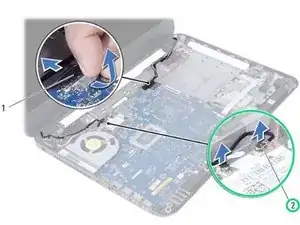

    • Connect the wireless mini-card cables to the connectors on the wireless mini-card.

  10. MbH1SsQaeGSSU36M

    • Connect the display cable to the connector on the system board.

  11. XBNXmq4ftDubYiYj

    • Adhere the tape that secures the display cable to the system board.
