If your computer is not functioning properly or you would like to upgrade your computer for faster data transfer, better graphics, or a faster CPU, this guide will show you how to remove the motherboard on the Dell Inspiron 15R 5537.
The motherboard is the fundamental element of your laptop, sort of like the brains behind everything. It connects all of the components of your laptop together. A faulty motherboard can result in freezing of your computer, blue screen of death, or a burning odor.
It is important to be sure to run a windows diagnostics test on your computer to ensure that your motherboard is the part having issues. You can also do a visual check of your motherboard by checking for blown capacitors or bent pins, but this can only be done if you break down your computer to where the motherboard is properly exposed.
Before beginning this guide, make sure your laptop is powered off and disconnected from any external power source.
-
-
Pull both of the locking tabs outwards until they both click to release the battery.
-
Pull the battery out by lifting it from the top and sliding it forward.
-
-
-
Turn the laptop over so that the keyboard is facing up.
-
Use an opening tool to pry the keyboard from the base of the laptop.
-
Once the top of the keyboard is released, slide the keyboard upwards.
-
-
-

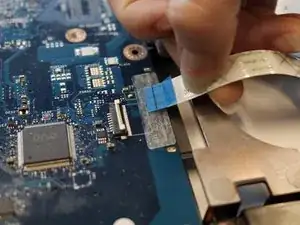

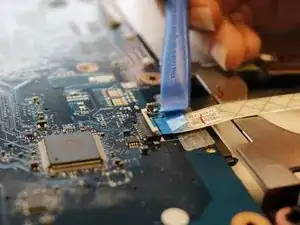

Use an opening tool to remove the keyboard ribbon from the latch by lifting the tab on top.
-
Once lifted, disconnect the ribbon and replace with a new keyboard.
-
-
-
Remove the 3mm Phillips #000 screw securing the Wi-Fi module.
-
Lift the Wi-Fi module up and out of the laptop.
-
-
-
Slide the hard-drive assembly forward to disconnect the hard-drive assembly from the system board.
-
-
-
Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.
-
-
-
Slide the hard-drive assembly backward to connect the hard-drive assembly to the system board.
-
-
-
Use the opening tool to lift the edges of the palm rest. Once all of the sides are lifted, pull the palm rest off.
-
-
-

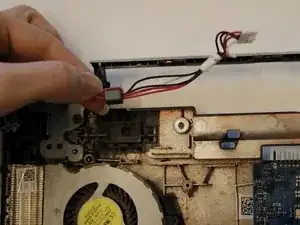

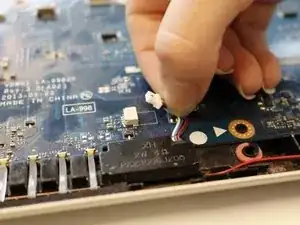

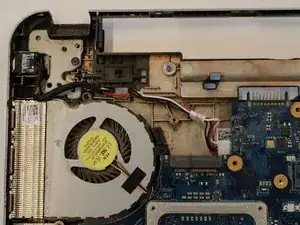

Unplug the display cable located near the right display hinge by lifting the tape and pulling back.
-
-
-

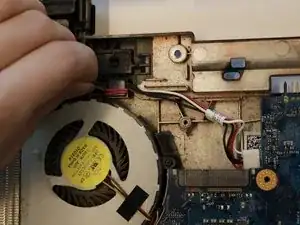

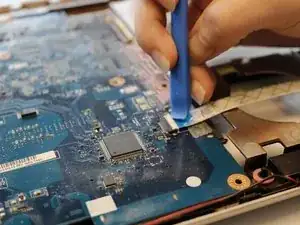

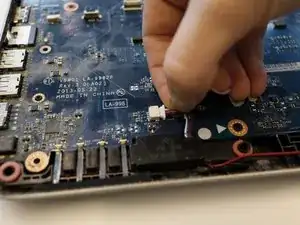

Remove the cable running over the hard drive by using the opening tool to lift the tab and pull back.
-
-
-

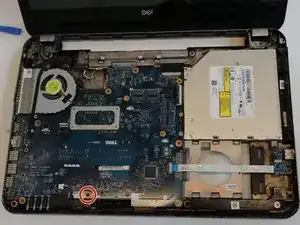

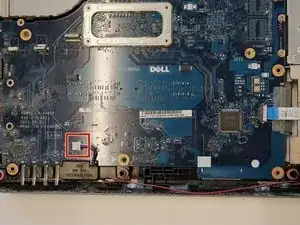

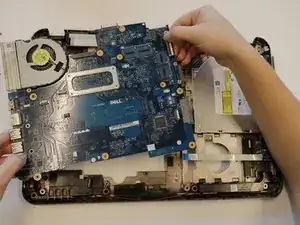

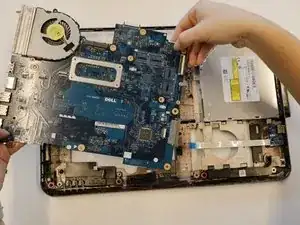

Remove the motherboard by lifting straight up. Ensure the CD drive is disconnected from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
